NSN 3110-00-112-5882
Part Details | NEEDLE ROLLER BEARING
3110-00-112-5882 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Alternate Parts: 1518419, 15184-19, 601821, 60182-1, 60182, GB87X, AA26789, GB87X, GB87, 3110-00-112-5882, 00-112-5882, 3110001125882, 001125882
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-112-5882 | 00051 ( BEARING, ROLLER, NEEDLE ) |
REFERENCE DRAWINGS & PICTURES

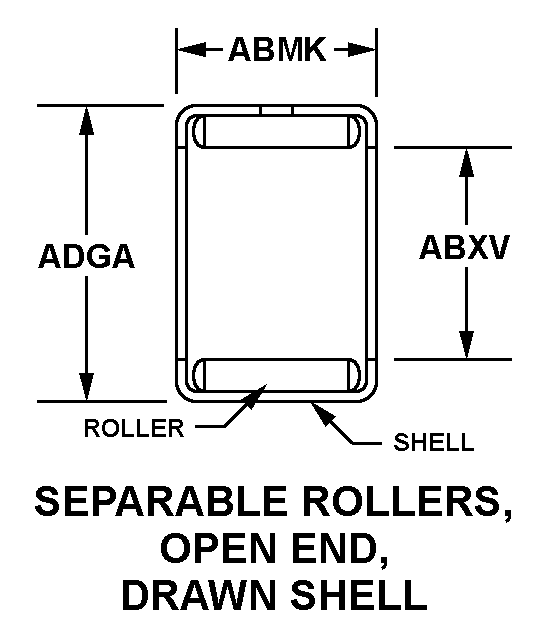

SEPARABLE ROLLERS, OPEN END, DRAWN SHELL
Cross Reference | NSN 3110-00-112-5882
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15184-19 | 29899 | CALGON CARBON UV TECHNOLOGIES LLCDBA HYDE MARINE |
| 60182-1 | 29201 | JOHN DEER CONSUMER PRODUCTS INC |
| 60182 | 29201 | JOHN DEER CONSUMER PRODUCTS INC |
| GB87X | 29201 | JOHN DEER CONSUMER PRODUCTS INC |
| AA26789 | 29201 | JOHN DEER CONSUMER PRODUCTS INC |
| GB87X | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| GB87 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
Technical Data | NSN 3110-00-112-5882
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SEPARABLE ROLLERS, OPEN END, DRAWN SHELL |
| OVERALL WIDTH | 0.4375 INCHES NOMINAL |
| BORE DIAMETER | 0.5000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.6875 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
