NSN 3110-00-114-7175
Part Details | OUTER BEARING RING
3110-00-114-7175 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 4795, 4795, 4795, 3110-00-114-7175, 00-114-7175, 3110001147175, 001147175
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-114-7175 | 00029 ( RING, BEARING, OUTER ) |
REFERENCE DRAWINGS & PICTURES

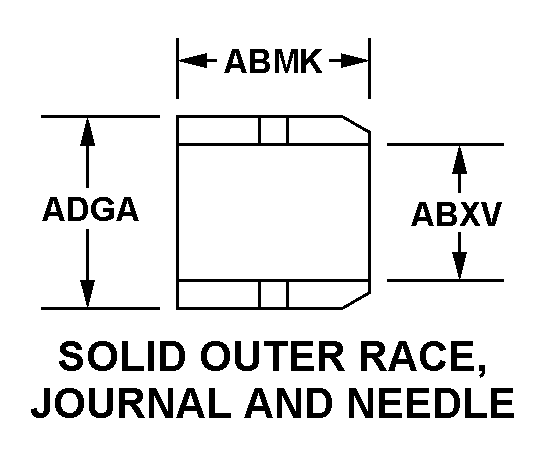

SOLID OUTER RACE, JOURNAL AND NEEDLE
Cross Reference | NSN 3110-00-114-7175
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4795 | 24617 | GENERAL MOTORS CORP |
| 4795 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 4795 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 3110-00-114-7175
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID OUTER RACE, JOURNAL AND NEEDLE |
| OVERALL WIDTH | 1.9950 INCHES MINIMUM AND 2.0000 INCHES MAXIMUM |
| BORE DIAMETER | 2.7480 INCHES MINIMUM AND 2.7500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.9375 INCHES MINIMUM AND 2.9395 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| SPECIAL FEATURES | ONE OIL HOLE,PLANISHED FINISH |
