NSN 3110-00-114-9601
Part Details | ANNULAR BALL BEARING
3110-00-114-9601 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 4022, 402-2, WC4022, WC402-2, 221294, 221-294, A2405, 221294, 221-294, 601379, FG1789, SR254, 52828R91, SR254, 2BX310A22, 1020DP, 52828R91, X318, 28832, 400062, CS1916X1, 3698E, 3-698E, 1020DP, 4022, 402-2, 4022, 402-2, 3051793H, J9726PART4022BG, J9726PART402-2BG, A8526PART1, 3110-00-114-9601, 00-114-9601, 3110001149601, 001149601
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-114-9601 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

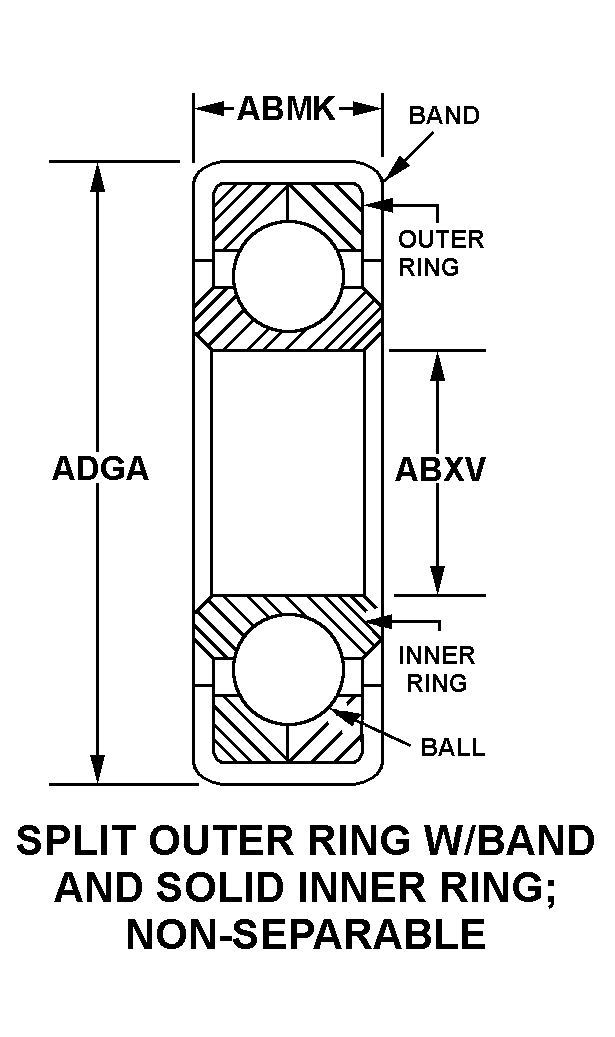

SPLIT OUTER RING WITH BAND AND SOLID INNER RING; NON-SEPARABLE
Cross Reference | NSN 3110-00-114-9601
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 402-2 | 71041 | ALTRA INDUSTRIAL MOTION CORP.DIV BOSTON GEAR |
| WC402-2 | 70413 | ANTI-FRICTION BEARING MFGASSN INC THE |
| 221-294 | 93230 | ATF-DAVIDSON CO |
| A2405 | 70801 | AUTOMOTIVE THRUST BEARING CORP |
| 221-294 | 91141 | DAVIDSON OPTRONICS INC.DBA DOI VENTURE |
| 601379 | 20361 | ELWELL-PARKER ELECTRIC CO |
| FG1789 | 23587 | FRICK CO |
| SR254 | 07191 | HOOVER SUPERIOR BALL CO INCSUB OF HOOVER UNIVERSAL INC |
| 52828R91 | 29930 | INTERNATIONAL HARVESTER COAGRICULTURAL EQUIPMENT DIV |
| SR254 | 75277 | KILIAN MANUFACTURING CORPORATION |
| 2BX310A22 | 76040 | MACK TRUCKS INCPARTS OPN |
| 1020DP | 27315 | MORRIS MATERIAL HANDLING, INC. |
| 52828R91 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| X318 | 77260 | PIERCE CO INC THESUB OF AVIS INDUSTRIAL CORP |
| 28832 | 60266 | RELIANCE ELECTRIC COTOLEDO SCALE DIV |
| 400062 | 02145 | RICHARDS IMAGERY INTERPRETATIONSYSTEMS L.L.C. |
| CS1916X1 | 21760 | SCHATZ BEARING CORPORATION |
| 3-698E | 21760 | SCHATZ BEARING CORPORATION |
| 1020DP | 21760 | SCHATZ BEARING CORPORATION |
| 402-2 | 43766 | SKF INDUSTRIES INCNICE BEARING PRODUCTS DIV |
| 402-2 | 52676 | SKF USA INC. |
| 3051793H | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| J9726PART402-2BG | 65025 | WESTERN UNION TELEGRAPH COSUB OF WESTERN UNION CORP |
| A8526PART1 | 65025 | WESTERN UNION TELEGRAPH COSUB OF WESTERN UNION CORP |
Technical Data | NSN 3110-00-114-9601
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPLIT OUTER RING WITH BAND AND SOLID INNER RING; NON-SEPARABLE |
| OVERALL WIDTH | 0.2400 INCHES MINIMUM AND 0.2600 INCHES MAXIMUM |
| BORE DIAMETER | 0.2500 INCHES MINIMUM AND 0.2550 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.6875 INCHES MINIMUM AND 0.6925 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
