Part Details | ANNULAR BALL BEARING
3110-00-115-2167 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 332952, 3110-00-115-2167, 00-115-2167, 3110001152167, 001152167
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 20, 1968 | 00-115-2167 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

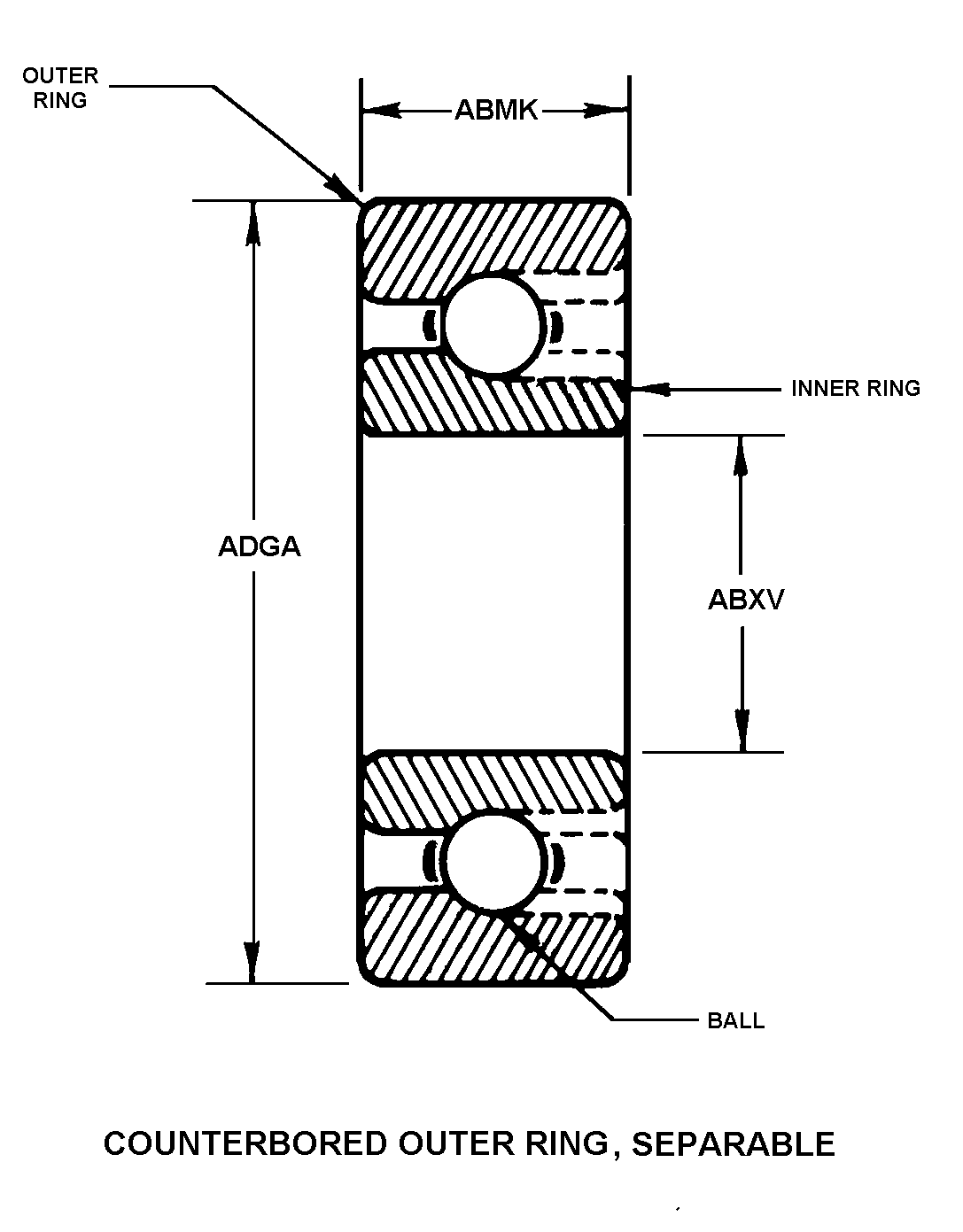

COUNTERBORED OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-115-2167
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 332952 | 62983 | EATON AEROSPACE LLC |
Technical Data | NSN 3110-00-115-2167
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, SEPARABLE |
| OVERALL WIDTH | 0.7430 INCHES MINIMUM AND 0.7480 INCHES MAXIMUM |
| BORE DIAMETER | 1.1809 INCHES MINIMUM AND 1.1811 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.8341 INCHES MINIMUM AND 2.8346 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| CONTACT ANGLE | 25.0 DEGREES MINIMUM |
