NSN 3110-00-116-4656
Part Details | NEEDLE ROLLER BEARING
3110-00-116-4656 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Alternate Parts: CYR1 18S, CYR1 1-8S, CYR1 18S, CYR1 1-8S, CYR1 18S, CYR1 1/8S, CYR1 18S, CYR1 1-8S, CYR118S, YCRS18, YCRS18, 3110-00-116-4656, 00-116-4656, 3110001164656, 001164656
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | OCT 04, 1968 | 00-116-4656 | 00051 ( BEARING, ROLLER, NEEDLE ) |
REFERENCE DRAWINGS & PICTURES

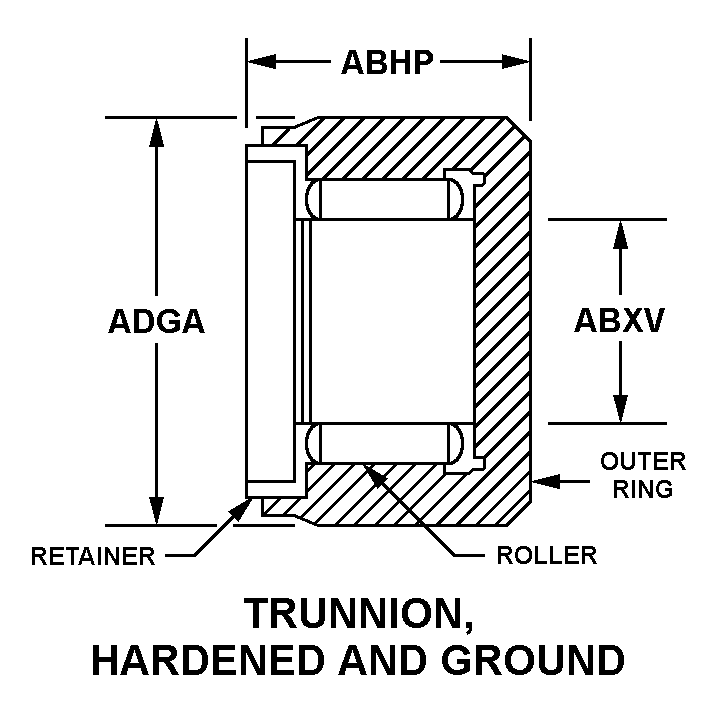

TRUNNION, HARDENED AND GROUND
Cross Reference | NSN 3110-00-116-4656
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CYR1 1-8S | 97384 | AAI CORPORATIONDBA TEXTRON SYSTEMS |
| CYR1 1-8S | 39317 | MCGILL MANUFACTURING COMPANY INCUSE CAGE CODE 92563 FOR CATALOGING. |
| CYR1 1/8S | 92563 | MCGILL MANUFACTURING COMPANY, INC. |
| CYR1 1-8S | 92563 | MCGILL MANUFACTURING COMPANY, INC. |
| CYR118S | 82634 | MCGILL MFG CO INCELECTRICAL DIV |
| YCRS18 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| YCRS18 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-116-4656
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TRUNNION, HARDENED AND GROUND |
| OVERALL LENGTH | 0.6775 INCHES MINIMUM AND 0.6925 INCHES MAXIMUM |
| BORE DIAMETER | 0.3121 INCHES MINIMUM AND 0.3127 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.1240 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | RIGID |
