NSN 3110-00-116-8798
Part Details | TAPERED ROLLER BEARING
3110-00-116-8798 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Alternate Parts: 21SAF10B3541A1PC56, 21AF10B3541PPC52, 21AF10B3541A1PC52, 15AF9B3541JPC56, 15AF9B3541APC56, 13AF10B3541PPC52, 13AF10B3541A1PC52, 10AF10C3541PPC53, 10AF10C3541APC53, NA93789320D, NA9378-9320D, MAF9B3541APC56, MAF10B3541APC56, MAFB3541GPC56, MAAFB3541A1PC56, AS11S410716PC52, AS11S41-0716PC52, AS11S410701PC52, AS11S41-0701PC52, 9AF9B3541PPC52, 9AF9B3541A1PC52, 8AFA3541RPC128, 8AFA3541A1PC128, 7AF9B3541JPC56, 7AF9B3541APC56, 22AF10C3541PPC52, 22AF10C3541A1PC52, 21SAF10B3541NPC56, 90303.0 PL FN 11, 9030-3.0 PL F/N 11, MS190897, MS19089-7, FFB1870909, FF-B-187/09-09, NA93789320D, NA937893200, NA9378-93200, NA93789320D, NA9378-9320D, A4693, 3110-00-116-8798, 00-116-8798, 3110001168798, 001168798
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-116-8798 | 00021 ( BEARING, ROLLER, TAPERED ) |

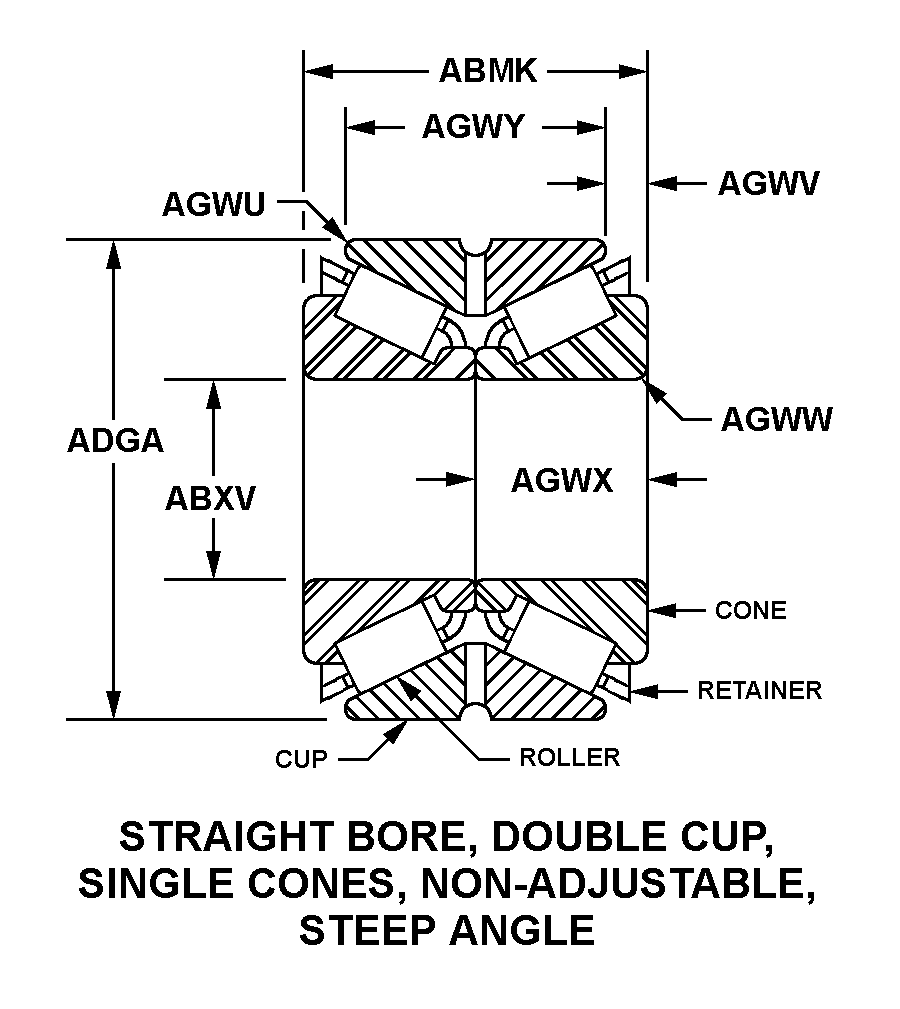

REFERENCE DRAWINGS & PICTURES
STRAIGHT BORE, DOUBLE CUP, SINGLE CONES, NON-ADJUSTABLE, STEEP ANGLE
Cross Reference | NSN 3110-00-116-8798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21SAF10B3541A1PC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 21AF10B3541PPC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 21AF10B3541A1PC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 15AF9B3541JPC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 15AF9B3541APC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 13AF10B3541PPC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 13AF10B3541A1PC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 10AF10C3541PPC53 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 10AF10C3541APC53 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| NA9378-9320D | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| MAF9B3541APC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| MAF10B3541APC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| MAFB3541GPC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| MAAFB3541A1PC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| AS11S41-0716PC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| AS11S41-0701PC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 9AF9B3541PPC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 9AF9B3541A1PC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 8AFA3541RPC128 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 8AFA3541A1PC128 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 7AF9B3541JPC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 7AF9B3541APC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 22AF10C3541PPC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 22AF10C3541A1PC52 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 21SAF10B3541NPC56 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| 9030-3.0 PL F/N 11 | 0W0U5 | MARITIME TANKSYSTEMS INTERNATIONAL,INC |
| MS19089-7 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| FF-B-187/09-09 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| NA93789320D | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
| NA9378-93200 | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
| NA9378-9320D | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
| A4693 | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
Technical Data | NSN 3110-00-116-8798
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT BORE, DOUBLE CUP, SINGLE CONES, NON-ADJUSTABLE, STEEP ANGLE |
| OVERALL WIDTH | 4.3125 INCHES NOMINAL |
| BORE DIAMETER | 3.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 7.0000 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.0930 INCHES NOMINAL |
| STANDOUT WIDTH | 0.6875 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.1400 INCHES NOMINAL |
| CUP WIDTH | 2.9375 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
| SPECIAL FEATURES | OIL HOLE AND GROOVE IN CUP |
