NSN 3110-00-117-4713
Part Details | BEARING RETAINER AND ROLLERS
3110-00-117-4713 An assembled inner component of a roller bearing, consisting of a frame or inclosure which spaces and retains the rolling elements of a BEARING, ROLLER (as modified) and the rollers which are the rolling elements in a BEARING, ROLLER (as modified).
Alternate Parts: C1411A, 5B737, 5B0737, G37134, 857731, G37134, 640892, 145K1, 14SKI, 799137, 703571, 799137, 703571, 446805, 267038, 267038, 0BX267038, 007857731, 007-857731, 2X6552A, 35BC, 3954P11, 35BC, 37134, 35BC, 116014622, 11601462-2, 1A0326, 3110-00-117-4713, 00-117-4713, 3110001174713, 001174713
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-117-4713 | 00035 ( RETAINER AND ROLLERS, BEARING ) |
REFERENCE DRAWINGS & PICTURES

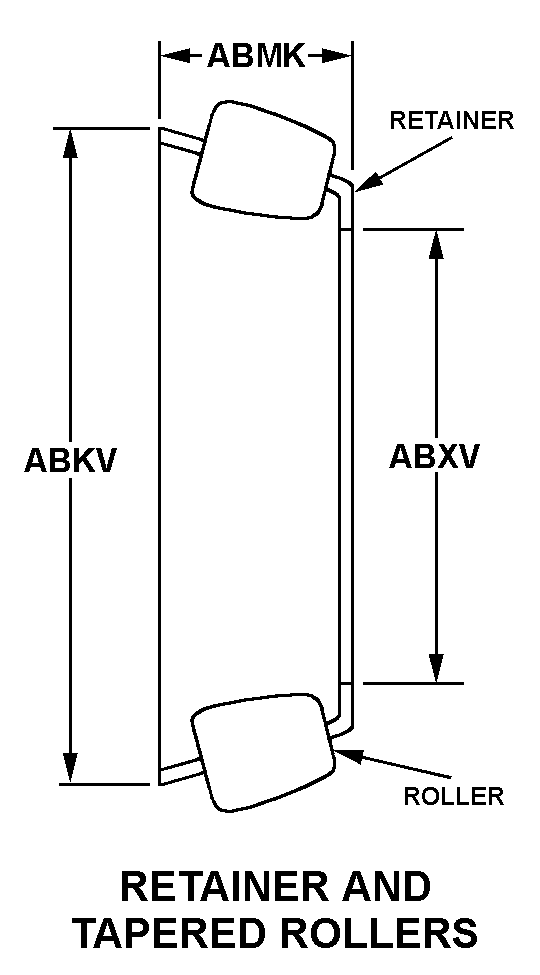

RETAINER AND TAPERED ROLLERS
Cross Reference | NSN 3110-00-117-4713
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C1411A | 05890 | BARRETT ELECTRONICS CORPINDUSTRIAL TRUCK DIV |
| 5B737 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 5B0737 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| G37134 | 12603 | CLARK EQUIPMENT CO |
| 857731 | 12603 | CLARK EQUIPMENT CO |
| G37134 | 89749 | CLARK MATERIAL HANDLING COMPANY |
| 640892 | 12204 | DAIMLER CHRYSLER |
| 145K1 | 56442 | DIAMOND REO TRUCK CO |
| 14SKI | 56442 | DIAMOND REO TRUCK CO |
| 799137 | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| 703571 | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| 799137 | 57526 | FORD MOTOR COMPANY |
| 703571 | 57526 | FORD MOTOR COMPANY |
| 446805 | 24617 | GENERAL MOTORS CORP |
| 267038 | 24617 | GENERAL MOTORS CORP |
| 267038 | 52788 | GENERAL MOTORS CORPSAGINAW DIV |
| 0BX267038 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| 007-857731 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| 2X6552A | 95201 | NAPCO INTERNATIONAL LLC |
| 35BC | 51588 | RBC BEARINGS INCORPORATEDDIV WEST TRENTON DIVISION |
| 3954P11 | 27618 | TAYLOR MACHINE WORKS, INC. |
| 35BC | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
| 37134 | 73740 | TRW INC TRW COMMERCIAL STEERING DIV |
| 35BC | 61220 | TYSON BEARING CO DIV SKF INDUSTRIESINC |
| 11601462-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 1A0326 | 62265 | VOLVO TRUCKS NORTH AMERICA INC.DBA FOREIGN PARENT IS VOLVO |
Technical Data | NSN 3110-00-117-4713
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RETAINER AND TAPERED ROLLERS |
| OUTSIDE DIAMETER | 2.2110 INCHES NOMINAL |
| OVERALL WIDTH | 0.5625 INCHES NOMINAL |
| BORE DIAMETER | 1.7187 INCHES NOMINAL |
| RETAINER FABRICATION METHOD | STAMPED |
| RETAINER PIECE QUANTITY | 1 |
| SPECIAL FEATURES | IN LINE,0.2810 IN. LARGEST DIA OF ROLLER,COPPER COATED RETAINER |
