NSN 3110-00-120-3107
Part Details | NEEDLE ROLLER BEARING
3110-00-120-3107 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Alternate Parts: 6751382, SK20613, SK206-13, SK20613, SK206-13, 6751382, 4840J, 6751382, 12Z100231, 12Z10023-1, 287057R91, 052642, 00526426, 0052642-6, 0052642, 709511, PC6751382, B2012X, B2012, 101590423, 10159042-3, 1ES5016, B2012, B-2012, 3110-00-120-3107, 00-120-3107, 3110001203107, 001203107
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-120-3107 | 00051 ( BEARING, ROLLER, NEEDLE ) |
REFERENCE DRAWINGS & PICTURES

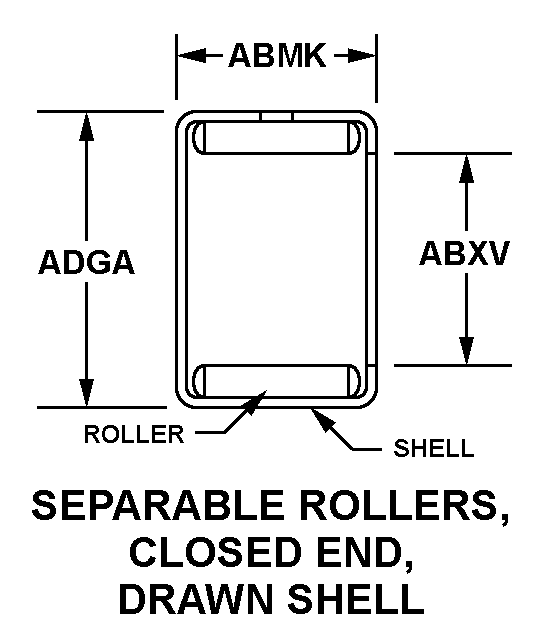

SEPARABLE ROLLERS, CLOSED END, DRAWN SHELL
Cross Reference | NSN 3110-00-120-3107
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6751382 | 73342 | ALLISON TRANSMISSION, INC. |
| SK206-13 | 12603 | CLARK EQUIPMENT CO |
| SK206-13 | 89749 | CLARK MATERIAL HANDLING COMPANY |
| 6751382 | 24617 | GENERAL MOTORS CORP |
| 4840J | 79410 | LIBERTY VENTURES INTI LLC |
| 6751382 | 72582 | MTU AMERICA INC. |
| 12Z10023-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 287057R91 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 052642 | 89926 | NEW HOLLAND CONSTRUCTION |
| 0052642-6 | 89926 | NEW HOLLAND CONSTRUCTION |
| 0052642 | 89926 | NEW HOLLAND CONSTRUCTION |
| 709511 | 00000 | ORDNANCE CORPS |
| PC6751382 | C7432 | POWER COMPONENTS (DEUTSCHLAND) GMBH |
| B2012X | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| B2012 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| 10159042-3 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 1ES5016 | 93343 | WHITE FARM EQUIPMENT COSUB OF TIC INVESTMENT CORP |
| B-2012 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 3110-00-120-3107
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SEPARABLE ROLLERS, CLOSED END, DRAWN SHELL |
| OVERALL WIDTH | 0.7400 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| BORE DIAMETER | 1.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.5000 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| ALIGNMENT TYPE | RIGID |
