NSN 3110-00-126-4971
Part Details | THRUST ROLLER BEARING
3110-00-126-4971 An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load.
Alternate Parts: T100 38, T100 3-8, C7041100, C7041-100, T100 38, T100 3-8, 3110-00-126-4971, 00-126-4971, 3110001264971, 001264971
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 27, 1968 | 00-126-4971 | 00020 ( BEARING, ROLLER, THRUST ) |
REFERENCE DRAWINGS & PICTURES

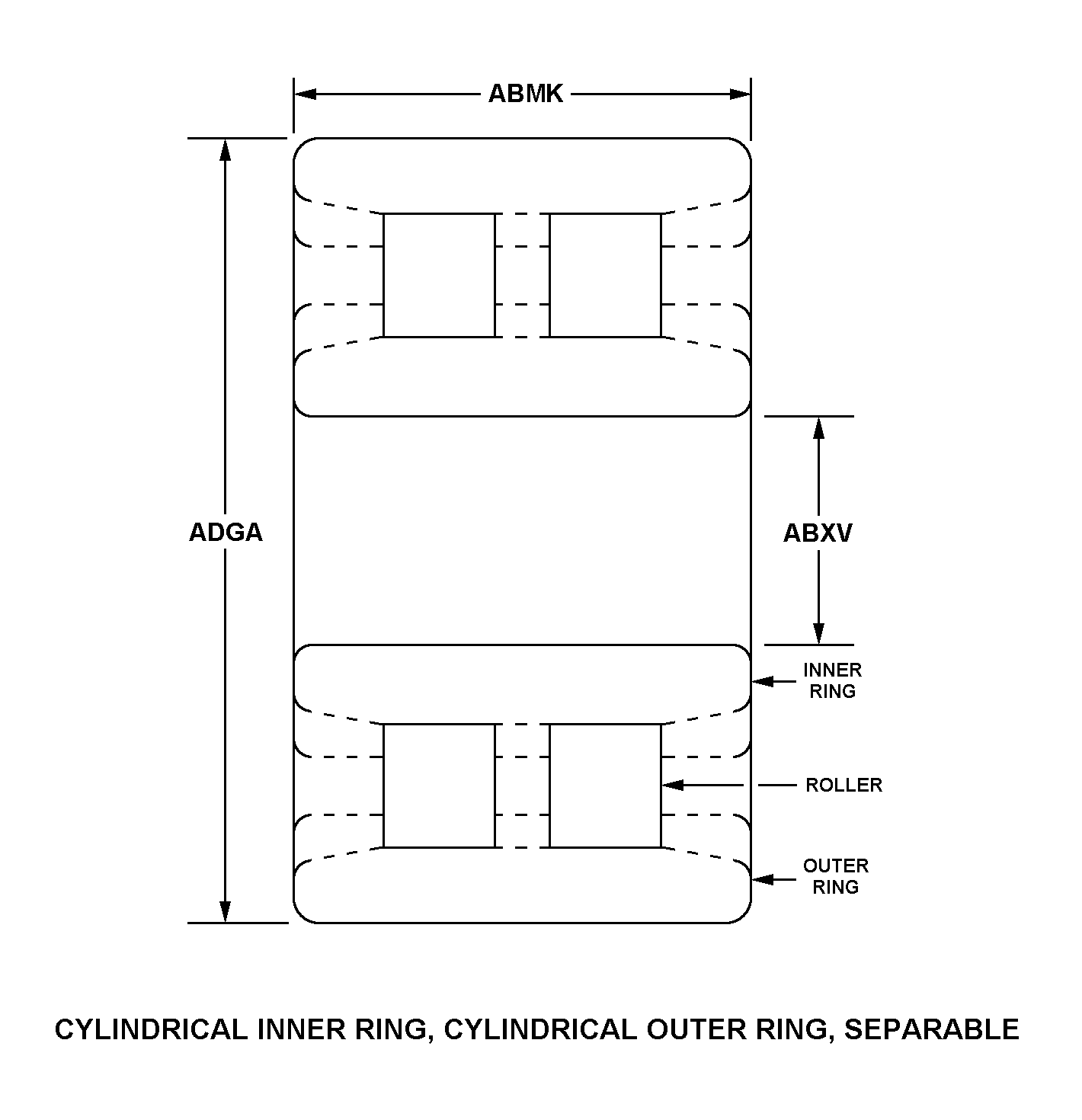

CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-126-4971
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T100 3-8 | 4ZKN9 | AUBURN BEARING & MANUFACTURING INC.DBA AUBURN BEARING & MANUFACTURING |
| C7041-100 | 00268 | CEF INDUSTRIES, LLCDBA CEF INDUSTRIES |
| T100 3-8 | 04538 | KNOWLTON M D COAUBURN BALL BEARING DIV |
Technical Data | NSN 3110-00-126-4971
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE |
| OVERALL HEIGHT | 0.5050 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.1875 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR THRUST BEARINGS |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
| SPECIAL FEATURES | 30 PCT FULL OF GREASE MIL-G-25013 |
