NSN 3110-00-126-9017
Part Details | ANNULAR BALL BEARING
3110-00-126-9017 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 22, 2-2, 3110-00-126-9017, 00-126-9017, 3110001269017, 001269017
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | MAR 05, 1975 | 00-126-9017 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

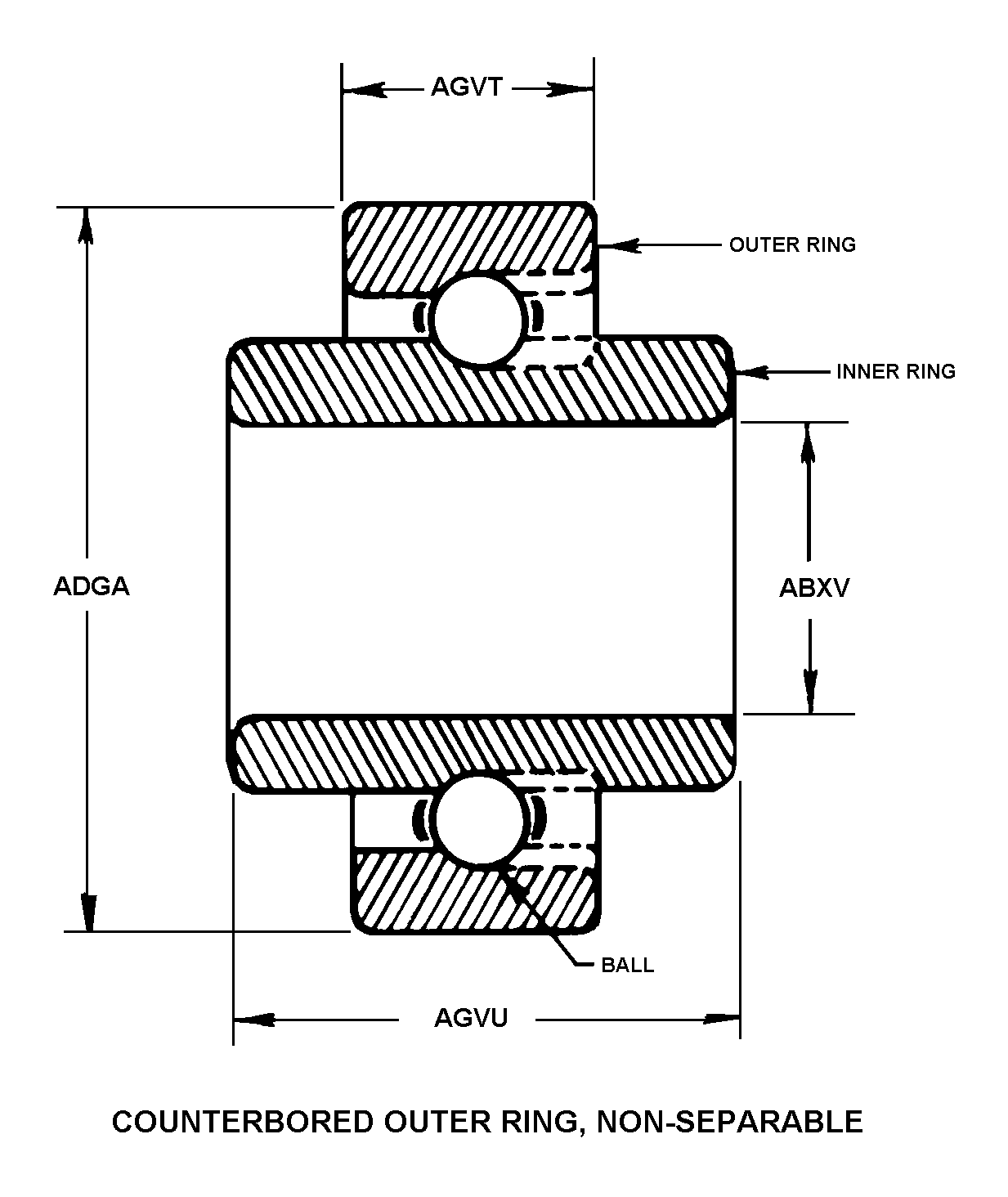

COUNTERBORED OUTER RING, NON-SEPARABLE
Cross Reference | NSN 3110-00-126-9017
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-2 | 02695 | MORSE INDUSTRIAL CORPSEALMASTER BEARING DIV |
Technical Data | NSN 3110-00-126-9017
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, NON-SEPARABLE |
| BORE DIAMETER | 2.7110 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.9370 INCHES NOMINAL |
| OUTER RING WIDTH | 1.1875 INCHES NOMINAL |
| INNER RING WIDTH | 2.1875 INCHES NOMINAL |
| LUBRICATION MATERIAL | LUBRICANT |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | LABYRINTH |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| FEATURES PROVIDED | ALIGNING RING |
