NSN 3110-00-364-2889
Part Details | OUTER BEARING RING
3110-00-364-2889 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 147032, 3110-00-364-2889, 00-364-2889, 3110003642889, 003642889
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | FEB 18, 1974 | 00-364-2889 | 00029 ( RING, BEARING, OUTER ) |
REFERENCE DRAWINGS & PICTURES

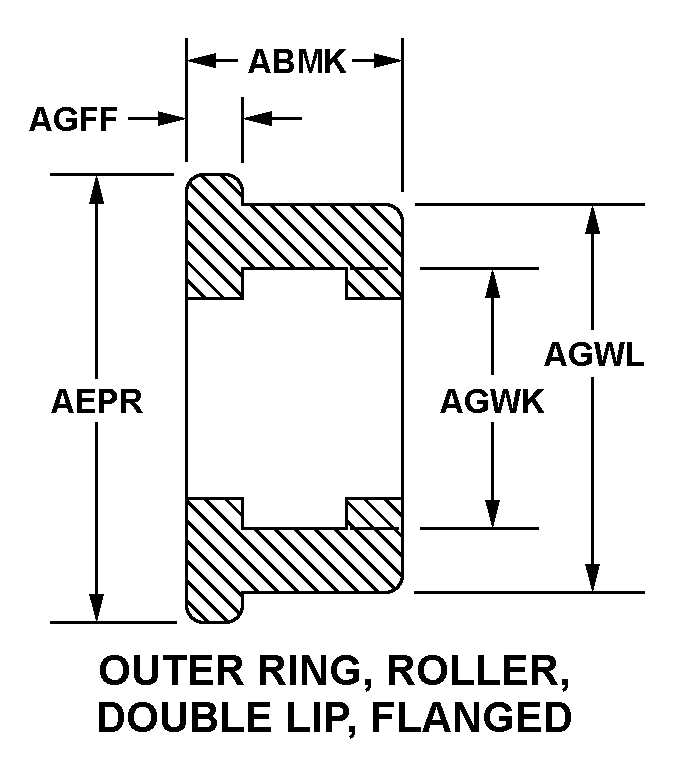

OUTER RING, ROLLER, DOUBLE LIP, FLANGED
Cross Reference | NSN 3110-00-364-2889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 147032 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVAL AND MARINE SYSTEMS |
Technical Data | NSN 3110-00-364-2889
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OUTER RING, ROLLER, DOUBLE LIP, FLANGED |
| OVERALL WIDTH | 0.8750 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 7.5000 INCHES NOMINAL |
| FLANGE WIDTH | 0.1875 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 6.0400 INCHES MINIMUM AND 6.0420 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 6.2500 INCHES NOMINAL |
| SURFACE FINISH | GROUND |
