NSN 3110-00-369-5337
Part Details | BEARING RETAINING PLATE
3110-00-369-5337 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: C5T27376, 3110-00-369-5337, 00-369-5337, 3110003695337, 003695337
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | FEB 24, 1969 | 00-369-5337 | 22293 ( PLATE, RETAINING, BEARING ) |

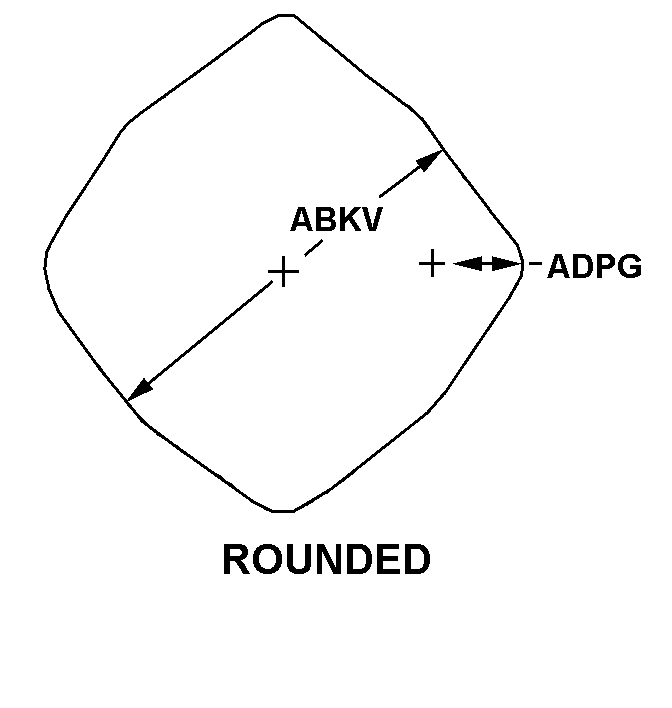

REFERENCE DRAWINGS & PICTURES
COUNTERBORED W/ APERTURE
VERTICAL CENTERLINE
ROUNDED
Cross Reference | NSN 3110-00-369-5337
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5T27376 | 78567 | SPECO CORP |
Technical Data | NSN 3110-00-369-5337
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUNDED |
| OUTSIDE DIAMETER | 3.810 INCHES NOMINAL |
| EAR RADIUS | 0.380 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | COUNTERBORED W/ APERTURE |
| MINOR THICKNESS | 0.135 INCHES MINIMUM AND 0.139 INCHES MAXIMUM |
| APERTURE DIAMETER | 2.440 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 2.6771 INCHES MINIMUM AND 2.6777 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.981 INCHES MINIMUM AND 0.985 INCHES MAXIMUM |
| OVERALL THICKNESS | 1.120 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.271 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | 5 VERTICAL CENTERLINE |
| BOLT CIRCLE HOLE QUANTITY | 6 |
| MOUNTING BOLT CIRCLE DIAMETER | 3.937 INCHES NOMINAL |
| SPECIAL FEATURES | BOSSES,TOP AND BOTTOM ARE ENLARGED TO PROVIDE FOR TWO EXTRA MOUNTING HOLES 0.271 IN. MIN 0.291 IN. MAX THRU 0.562 DIAM CSNK TIMES 82 DEG-100 DEG |
| END ITEM IDENTIFICATION | C-5A ACFT |
