NSN 3110-00-402-0215
Part Details | ANNULAR BALL BEARING
3110-00-402-0215 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: F472011, F4720-11, GX15, GS3236, CS1674, 3110-00-402-0215, 00-402-0215, 3110004020215, 004020215
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | APR 01, 1970 | 00-402-0215 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

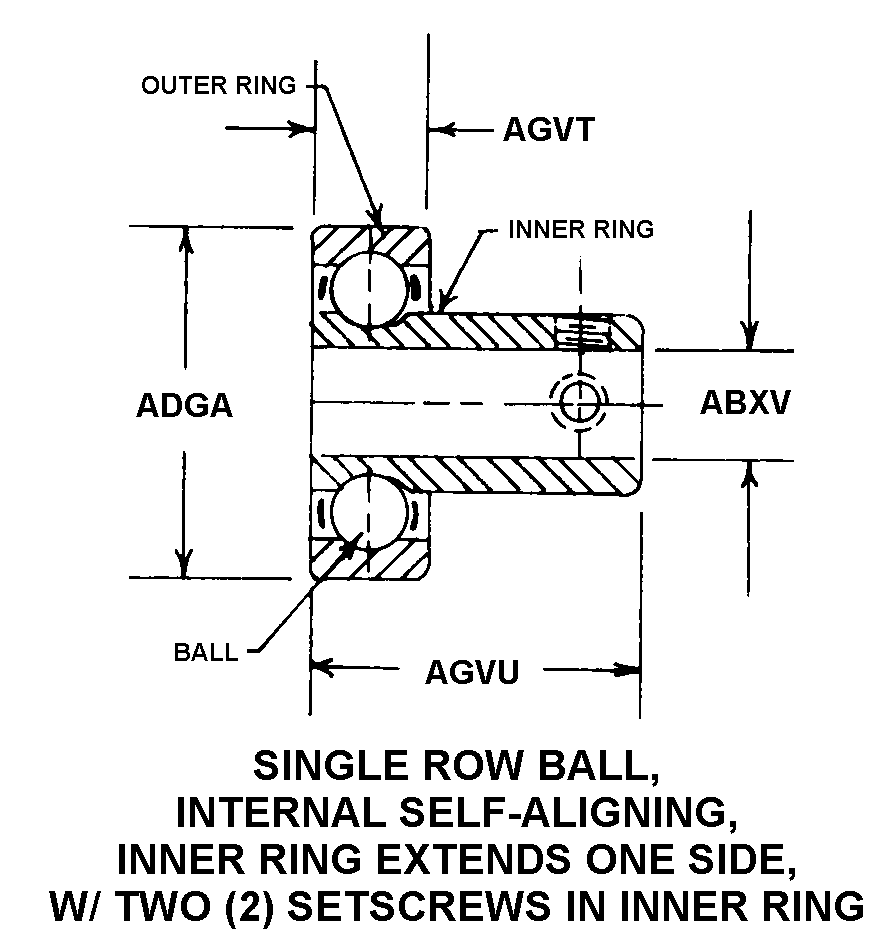

SINGLE ROW BALL, INTERNAL SELF-ALIGNING, INNER RING EXTENDS ONE SIDE, WITH TWO SETSCREWS IN INNER RING
Cross Reference | NSN 3110-00-402-0215
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F4720-11 | 02077 | MILLER-HOLZWARTH INC. |
| GX15 | 21760 | SCHATZ BEARING CORPORATION |
| GS3236 | 21760 | SCHATZ BEARING CORPORATION |
| CS1674 | 21760 | SCHATZ BEARING CORPORATION |
Technical Data | NSN 3110-00-402-0215
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW BALL, INTERNAL SELF-ALIGNING, INNER RING EXTENDS ONE SIDE, WITH TWO SETSCREWS IN INNER RING |
| BORE DIAMETER | 0.5000 INCHES MINIMUM AND 0.5010 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.1240 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3650 INCHES MINIMUM AND 0.3850 INCHES MAXIMUM |
| INNER RING WIDTH | 0.7400 INCHES MINIMUM AND 0.7600 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | SPLIT OUTER RING CONSISTING OF TWO PCS,BANDED OUTER CASE,OUTER CASE HAS MINIMUM CLEARANCE WITH THE INNER RING ON ONE SIDE OF THE BEARING FOR A SHIELD TYPE CLOSURE |
