NSN 3110-00-403-7659
Part Details | ANNULAR BALL BEARING
3110-00-403-7659 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: PA1127, PA1127ADX, 87505X1C, 3110-00-403-7659, 00-403-7659, 3110004037659, 004037659
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 30, 1969 | 00-403-7659 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

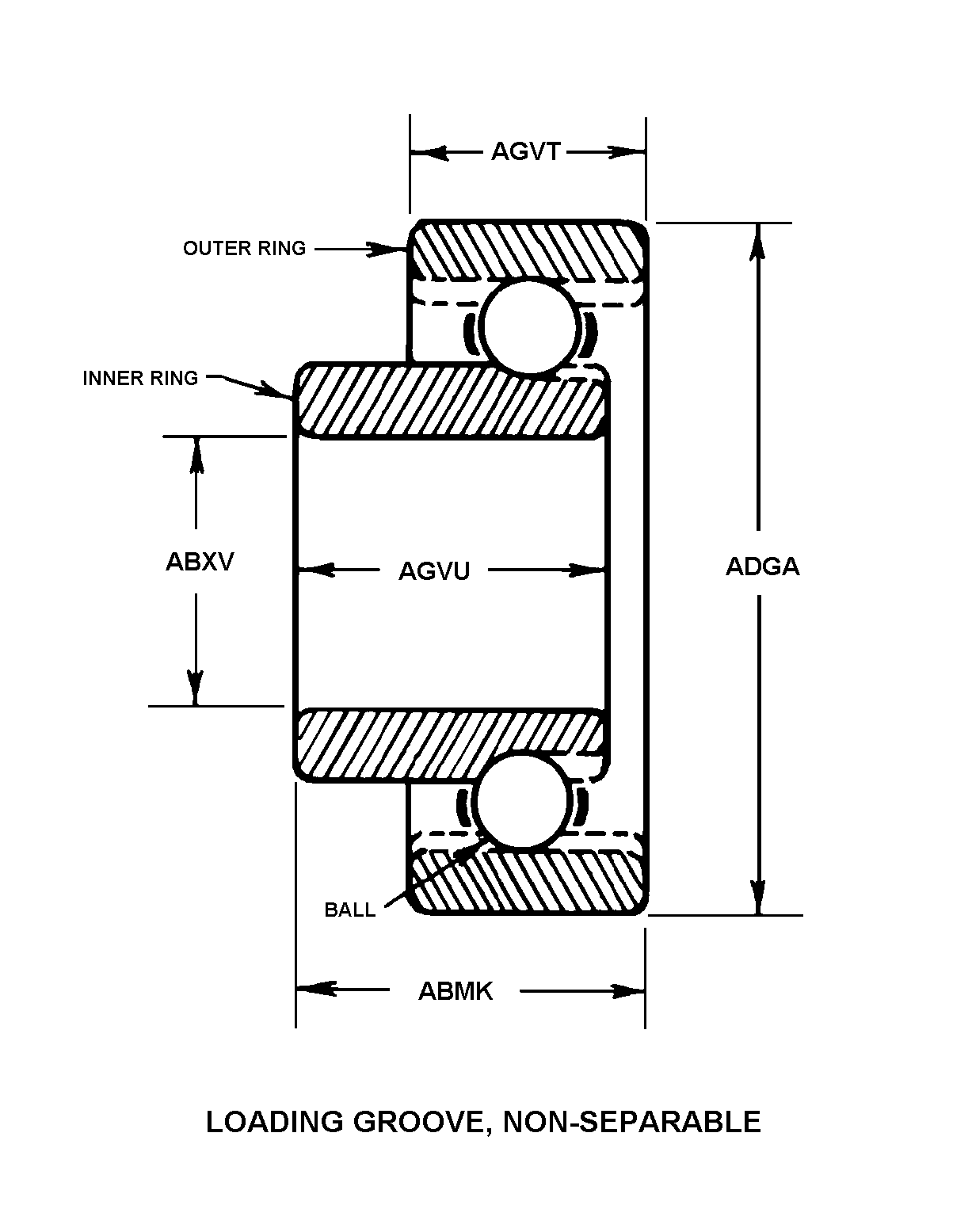

LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-403-7659
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PA1127 | 79805 | ACCO-BABCOCK INCHOIST AND CRANE DIV |
| PA1127ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 87505X1C | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
Technical Data | NSN 3110-00-403-7659
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.6250 INCHES NOMINAL |
| BORE DIAMETER | 25.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 52.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.5910 INCHES NOMINAL |
| INNER RING WIDTH | 0.6000 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | ANDOK C,FSCM 29700 MFR REF SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 1 |
| SEAL QUANTITY | 1 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
