NSN 3110-00-408-7933
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-408-7933 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 237931RP, 237903RP, 234103RP, 224936RP, 3110-00-408-7933, 00-408-7933, 3110004087933, 004087933
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 10, 1970 | 00-408-7933 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

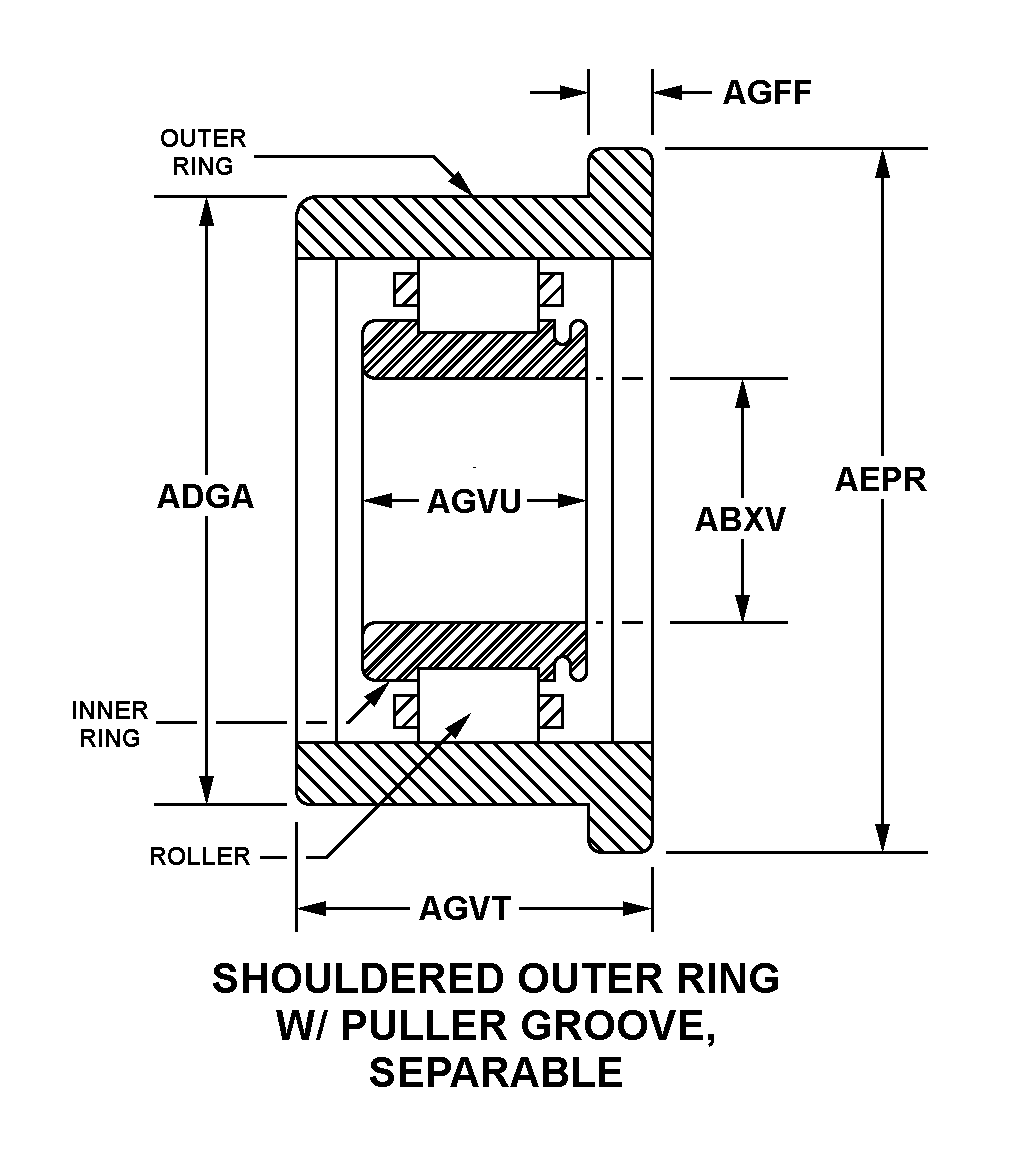

SHOULDERED OUTER RING W/PULLER GROOVE, S EPARABLE
Cross Reference | NSN 3110-00-408-7933
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 237931RP | 98748 | AIR FORCE UNITED STATES DEPARTMENTOF THE |
| 237903RP | 98748 | AIR FORCE UNITED STATES DEPARTMENTOF THE |
| 234103RP | 98748 | AIR FORCE UNITED STATES DEPARTMENTOF THE |
| 224936RP | 98748 | AIR FORCE UNITED STATES DEPARTMENTOF THE |
Technical Data | NSN 3110-00-408-7933
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SHOULDERED OUTER RING W/PULLER GROOVE, S EPARABLE |
| BORE DIAMETER | 3.9130 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 4.3304 INCHES MINIMUM AND 4.3307 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 4.5900 INCHES MINIMUM AND 4.6100 INCHES MAXIMUM |
| FLANGE WIDTH | 0.1240 INCHES MINIMUM AND 0.1260 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.1761 INCHES MINIMUM AND 1.1811 INCHES MAXIMUM |
| INNER RING WIDTH | 0.8611 INCHES MINIMUM AND 0.8661 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| SPECIAL FEATURES | SILVERPLATE CAGE 0.0005-0.0015 THK ON LAND RIDING SURF AND ROLLER POCKETS PER AMS 2412,BAKE AT 475-500 F FOR TWO HOURS TO CHECK FOR BOND |
| END ITEM IDENTIFICATION | ACFT ENG J-57 |
