NSN 3110-00-409-9851
Part Details | BEARING RETAINER AND BALLS
3110-00-409-9851 An assembled inner component of a ball bearing, consisting of a frame or inclosure which spaces and fixes the position of the rolling elements of a BEARING, BALL (as modified) and the spherical bodies which are the rolling elements in a BEARING, BALL (as modified).
Alternate Parts: 00267025302, 00267-0253-02, 00267025302, 00267-0253-02, 3110-00-409-9851, 00-409-9851, 3110004099851, 004099851
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 13, 1970 | 00-409-9851 | 00034 ( RETAINER AND BALLS, BEARING ) |
REFERENCE DRAWINGS & PICTURES

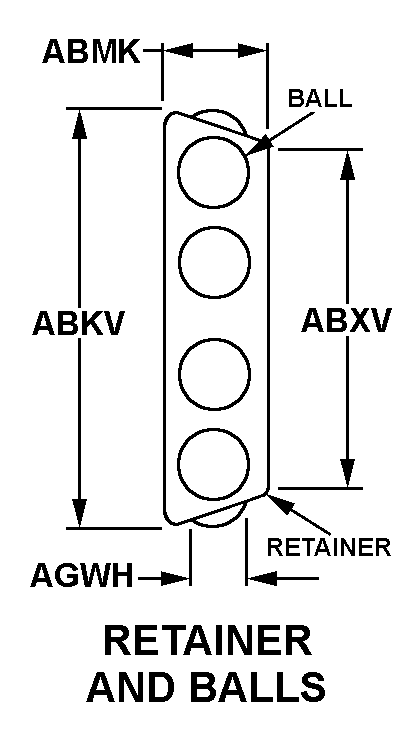

RETAINER AND BALLS
Cross Reference | NSN 3110-00-409-9851
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00267-0253-02 | 93568 | HARSCO CORPBMY-COMBAT SYSTEMS DIV |
| 00267-0253-02 | 79343 | SCIENCE APPLICATIONS INTERNATIONALCORPORATION |
Technical Data | NSN 3110-00-409-9851
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RETAINER AND BALLS |
| OUTSIDE DIAMETER | 1.3080 INCHES MINIMUM AND 1.3600 INCHES MAXIMUM |
| OVERALL WIDTH | 0.3430 INCHES MINIMUM AND 0.3580 INCHES MAXIMUM |
| BORE DIAMETER | 0.7990 INCHES MINIMUM AND 0.8090 INCHES MAXIMUM |
| ROLLING ELEMENT DIAMETER | 0.28085 INCHES MINIMUM AND 0.28165 INCHES MAXIMUM |
| RETAINER FABRICATION METHOD | PRESSED |
| RETAINER PIECE QUANTITY | 1 |
| SPECIAL FEATURES | ANGULAR CONTACT TYPE |
