NSN 3110-00-420-2459
Part Details | BEARING RETAINING PLATE
3110-00-420-2459 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: C5A27252, 3110-00-420-2459, 00-420-2459, 3110004202459, 004202459
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | MAR 05, 1969 | 00-420-2459 | 22293 ( PLATE, RETAINING, BEARING ) |
REFERENCE DRAWINGS & PICTURES

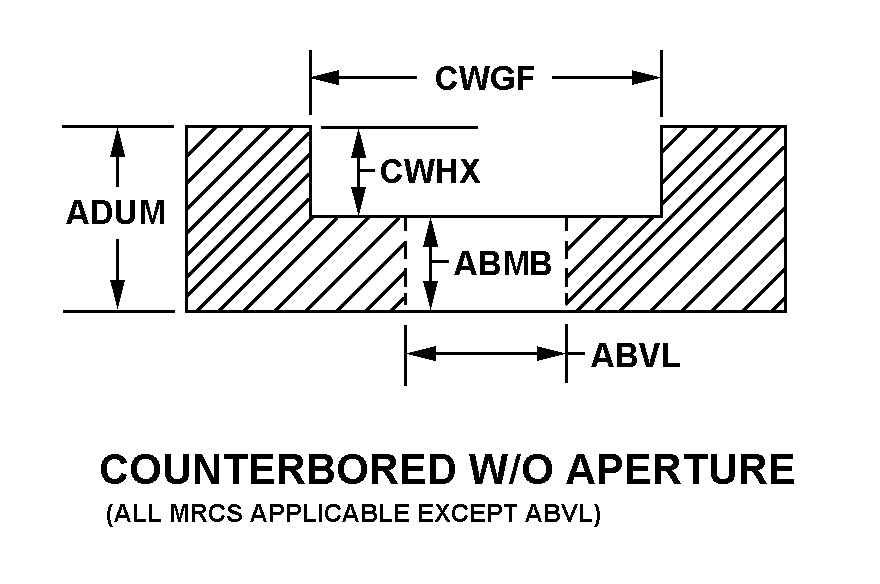

COUNTERBORED W/O APERTURE
VERTICAL CENTERLINE
SQUARE
Cross Reference | NSN 3110-00-420-2459
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5A27252 | 78567 | SPECO CORP |
Technical Data | NSN 3110-00-420-2459
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SQUARE |
| LENGTH | 2.310 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | COUNTERBORED W/O APERTURE |
| MINOR THICKNESS | 0.157 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 1.6525 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.339 INCHES NOMINAL |
| OVERALL THICKNESS | 0.496 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.271 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | 2 VERTICAL CENTERLINE |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 1.625 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 1.625 INCHES NOMINAL |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.812 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.812 INCHES NOMINAL |
