NSN 3110-00-448-4407
Part Details | ANNULAR BALL BEARING
3110-00-448-4407 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: DFSS18, DFSS18, 2663645, 3110-00-448-4407, 00-448-4407, 3110004484407, 004484407
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 04, 1971 | 00-448-4407 | 00014 ( BEARING, BALL, ANNULAR ) |

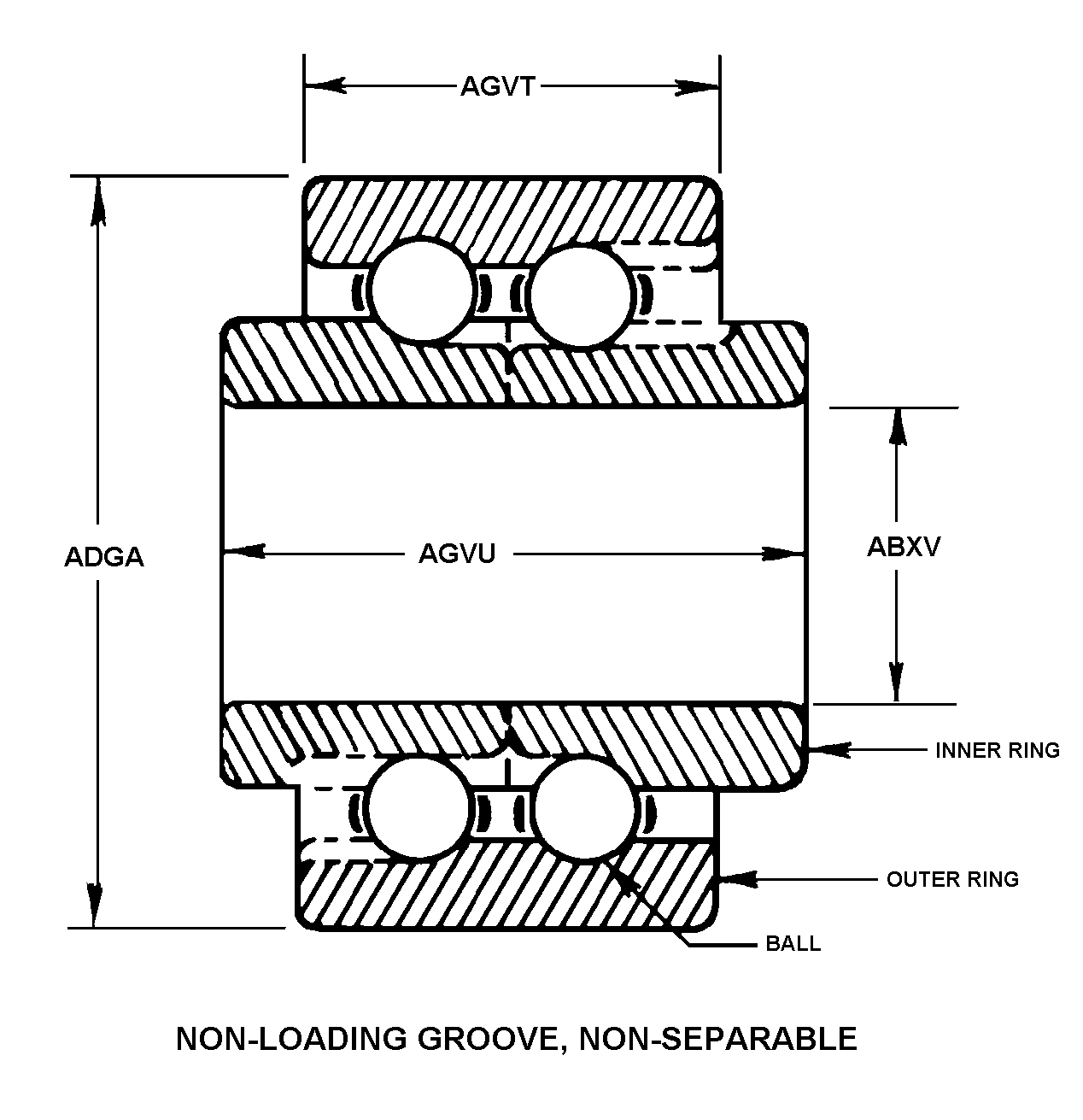

REFERENCE DRAWINGS & PICTURES
NON-LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-448-4407
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DFSS18 | 78118 | MPB CORPORATIONDBA TIMKEN AEROSPACE |
| DFSS18 | 40920 | MPB CORPORATIONDBA TIMKEN SUPER PRECISION |
| 2663645 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
Technical Data | NSN 3110-00-448-4407
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 1.1245 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.6250 INCHES MINIMUM AND 1.6255 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.5550 INCHES MINIMUM AND 0.5650 INCHES MAXIMUM |
| INNER RING WIDTH | 0.6200 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
