NSN 3110-00-470-8060
Part Details | LINEAR MOTION BALL BEARING
3110-00-470-8060 A cylindrical device, containing three or more oblong ball circuits complete with a retainer to guide the balls in their proper path, specifically designed for use on sliding linear motion shafts to minimize friction and wear.
Alternate Parts: L10, A101824, 3110-00-470-8060, 00-470-8060, 3110004708060, 004708060
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 30, 1970 | 00-470-8060 | 61484 ( BEARING, BALL, LINEAR MOTION ) |

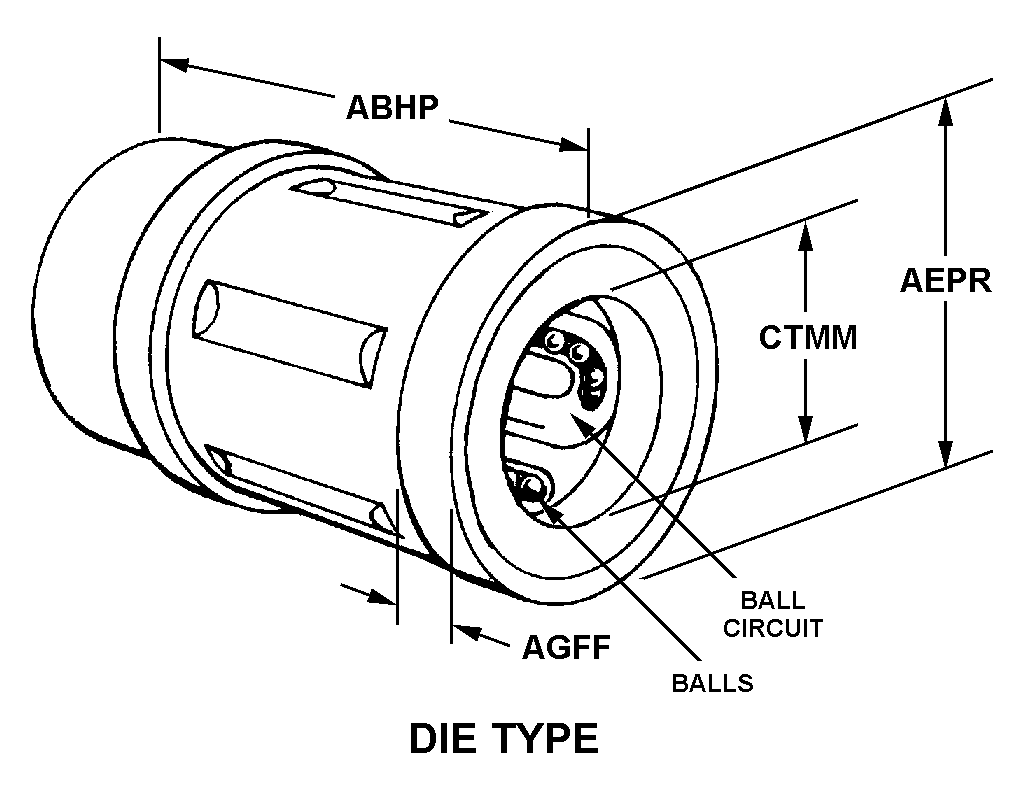

REFERENCE DRAWINGS & PICTURES
DIE TYPE
Cross Reference | NSN 3110-00-470-8060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L10 | 70854 | BARDEN CORPORATION, THEDIV BARDEN PRECISION BEARINGS |
| A101824 | 96881 | THOMSON INDUSTRIES INC |
Technical Data | NSN 3110-00-470-8060
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DIE TYPE |
| OVERALL LENGTH | 1.4850 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.1246 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| FLANGE WIDTH | 0.2000 INCHES NOMINAL |
| WORKING BORE DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
