NSN 3110-00-480-4798
Part Details | OUTER BEARING RING
3110-00-480-4798 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 181272, 181-272, 1212U, 3110-00-480-4798, 00-480-4798, 3110004804798, 004804798
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 11, 1970 | 00-480-4798 | 00029 ( RING, BEARING, OUTER ) |
REFERENCE DRAWINGS & PICTURES

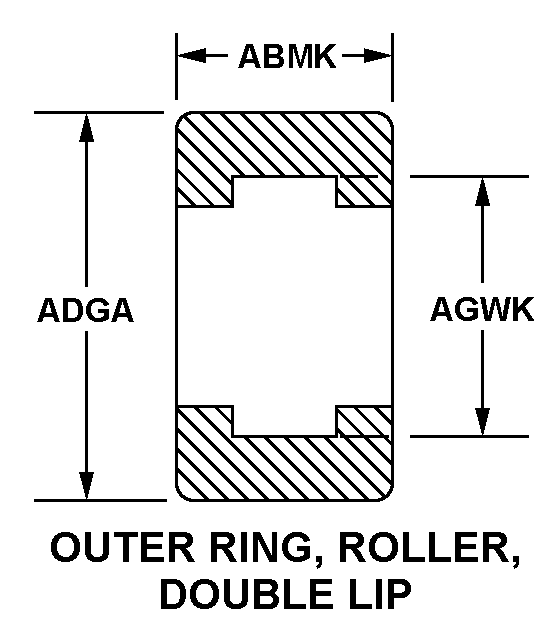

OUTER RING, ROLLER, DOUBLE LIP
Cross Reference | NSN 3110-00-480-4798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 181-272 | 35301 | DRESSER INDUSTRIES INCLEROI DIV |
| 1212U | 51600 | REGAL BELOIT AMERICA, INC.DBA ROLLWAY BEARING |
Technical Data | NSN 3110-00-480-4798
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OUTER RING, ROLLER, DOUBLE LIP |
| OVERALL WIDTH | 22.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 110.0 MILLIMETERS NOMINAL |
| LARGEST BORE DIAMETER | 3.8490 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| SURFACE FINISH | GROUND |
| SPECIAL FEATURES | TWO LIP OUTER RING |
