NSN 3110-00-485-8379
Part Details | BEARING ROLLER
3110-00-485-8379 A cylindrical body of either solid or hollow construction which provides the rolling elements in the roller bearing.
Alternate Parts: 14572411, 1457241-1, 3110-00-485-8379, 00-485-8379, 3110004858379, 004858379
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUN 19, 1974 | 00-485-8379 | 00037 ( ROLLER, BEARING ) |
REFERENCE DRAWINGS & PICTURES

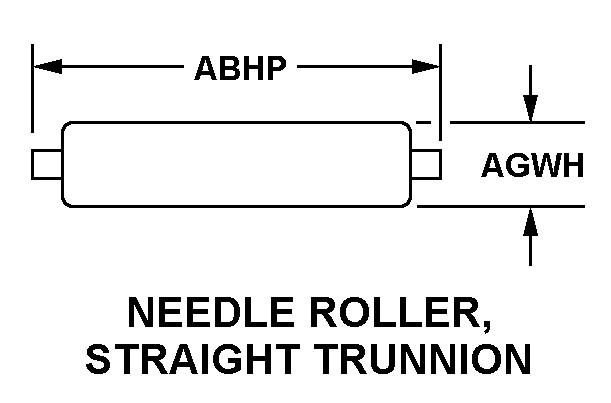

NEEDLE ROLLER, STRAIGHT TRUNNION
Cross Reference | NSN 3110-00-485-8379
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1457241-1 | 98889 | AEROCONTROLEX GROUP, INC.DBA TALLEY ACTUATORS |
Technical Data | NSN 3110-00-485-8379
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NEEDLE ROLLER, STRAIGHT TRUNNION |
| OVERALL LENGTH | 0.3900 INCHES MINIMUM AND 0.4000 INCHES MAXIMUM |
| ROLLING ELEMENT DIAMETER | 0.1562 INCHES NOMINAL |
| SPECIAL FEATURES | CHAMFER AT BOTH ENDS,0.005 IN. MIN TO 0.010 IN. MAX BY 45 DEGREES |
