NSN 3110-00-496-2827
Part Details | LINEAR MOTION BALL BEARING
3110-00-496-2827 A cylindrical device, containing three or more oblong ball circuits complete with a retainer to guide the balls in their proper path, specifically designed for use on sliding linear motion shafts to minimize friction and wear.
Alternate Parts: 0PN324864, 3110-00-496-2827, 00-496-2827, 3110004962827, 004962827
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 26, 1969 | 00-496-2827 | 61484 ( BEARING, BALL, LINEAR MOTION ) |

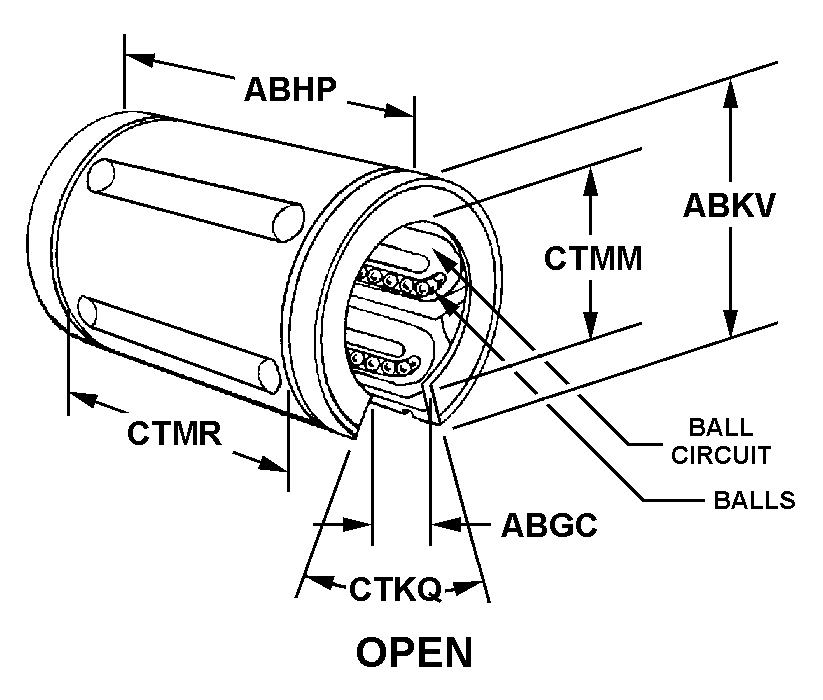

REFERENCE DRAWINGS & PICTURES
OPEN
Cross Reference | NSN 3110-00-496-2827
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0PN324864 | 96881 | THOMSON INDUSTRIES INC |
Technical Data | NSN 3110-00-496-2827
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN |
| SLOT ANGLE | 0.50 DEGREES NOMINAL |
| SLOT WIDTH | 1.0000 INCHES NOMINAL |
| OVERALL LENGTH | 3.9800 INCHES MINIMUM AND 4.0000 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 3.0000 INCHES MINIMUM AND 3.0010 INCHES MAXIMUM |
| WORKING BORE DIAMETER | 1.9992 INCHES MINIMUM AND 2.0008 INCHES MAXIMUM |
| DISTANCE BETWEEN RETAINING RINGS | 2.9850 INCHES MINIMUM AND 3.0150 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| BEARING BALL QUANTITY | 5 |
