NSN 3110-00-516-5579
Part Details | ANNULAR BALL BEARING
3110-00-516-5579 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 1007SLR105S, 1007SLR105S, RB10, 3110-00-516-5579, 00-516-5579, 3110005165579, 005165579
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-516-5579 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

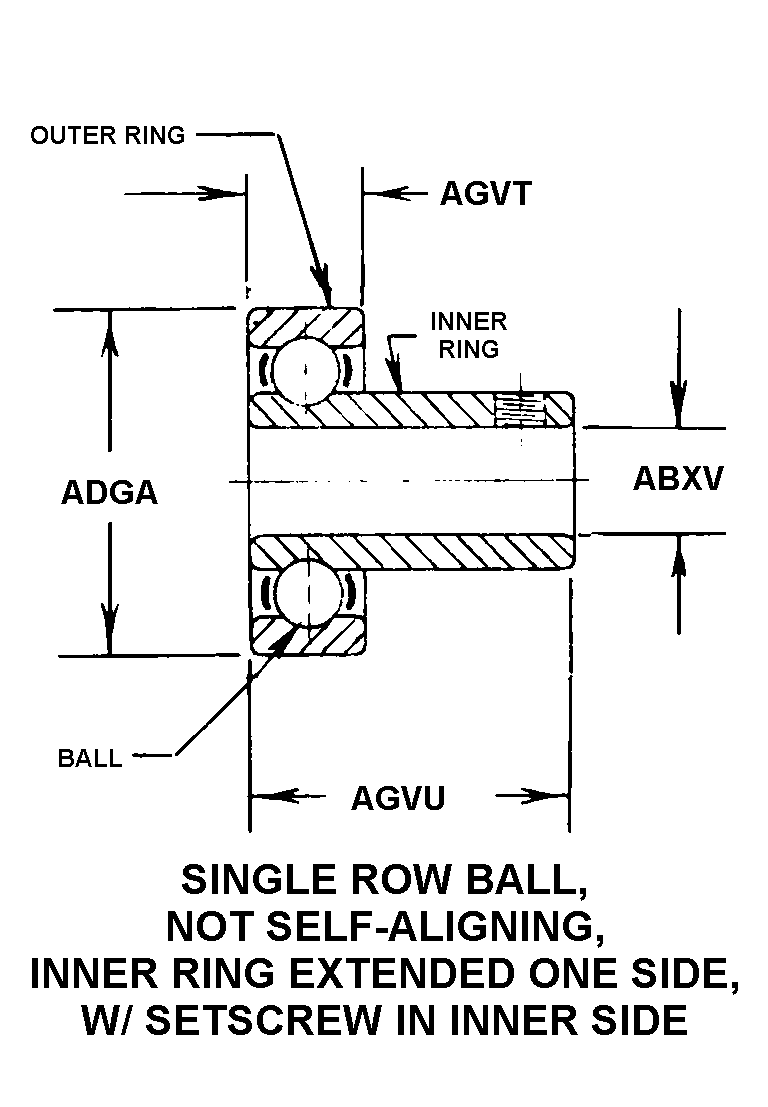

SINGLE ROW BALL, NOT SELF-ALIGNING, INNER RING EXTENDED ONE SIDE, WITH SETSCREW IN INNER RING
Cross Reference | NSN 3110-00-516-5579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1007SLR105S | 99300 | HARDING-WATERCRAFT INC |
| 1007SLR105S | 63504 | PALFINGER MARINE USA INC |
| RB10 | 57448 | STEPHENS-ADAMSON INCA SUB OF ALLIS-CHALMERS CORP |
Technical Data | NSN 3110-00-516-5579
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW BALL, NOT SELF-ALIGNING, INNER RING EXTENDED ONE SIDE, WITH SETSCREW IN INNER RING |
| BORE DIAMETER | 0.6250 INCHES MINIMUM AND 0.6254 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.8499 INCHES MINIMUM AND 1.8504 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.6250 INCHES NOMINAL |
| INNER RING WIDTH | 1.2763 INCHES MINIMUM AND 1.2813 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | DOD-G-24508 MIL SPEC SINGLE MATERIAL RESPONSE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | LABYRINTH |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
