NSN 3110-00-522-8369
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-522-8369 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 5228369, 3110-00-522-8369, 00-522-8369, 3110005228369, 005228369
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-522-8369 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

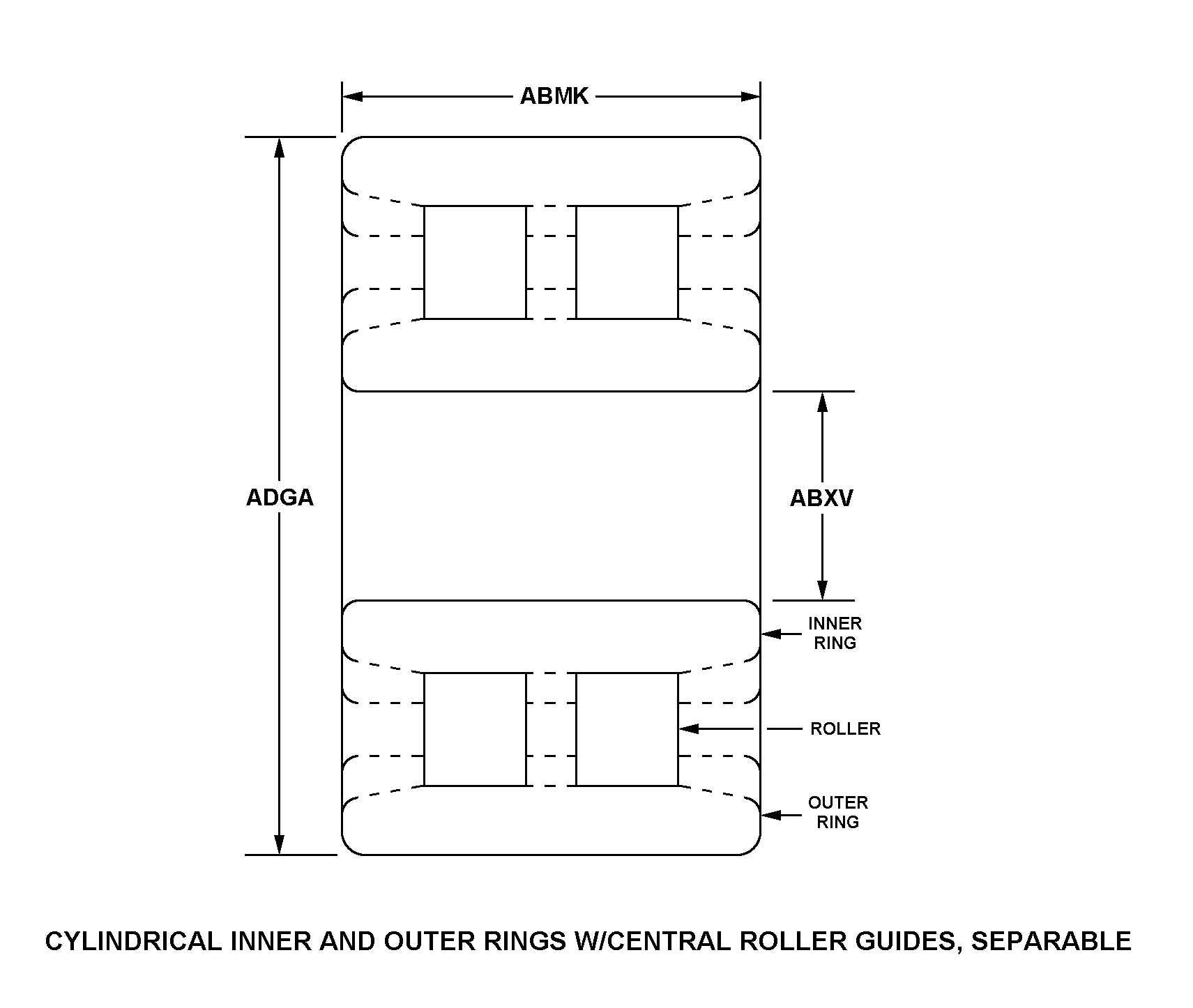

CYLINDRICAL INNER AND OUTER RINGS W/CENTRAL ROLLER GUIDES, SEPARABLE
Cross Reference | NSN 3110-00-522-8369
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5228369 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 3110-00-522-8369
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL INNER AND OUTER RINGS W/CENTRAL ROLLER GUIDES, SEPARABLE |
| OVERALL WIDTH | 1.4970 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM |
| BORE DIAMETER | 21.4980 INCHES MINIMUM |
| OVERALL OUTSIDE DIAMETER | 24.4980 INCHES MINIMUM AND 25.0000 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| CRITICALITY CODE JUSTIFICATION | AADGA$$AABMK |
