NSN 3110-00-542-1819
Part Details | DUPLEX BALL BEARING
3110-00-542-1819 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Alternate Parts: 20204DTX5E, 20204DTX5E, 20204DTX5E, 9053605, 3110-00-542-1819, 00-542-1819, 3110005421819, 005421819
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-542-1819 | 30213 ( BEARING, BALL, DUPLEX ) |
REFERENCE DRAWINGS & PICTURES

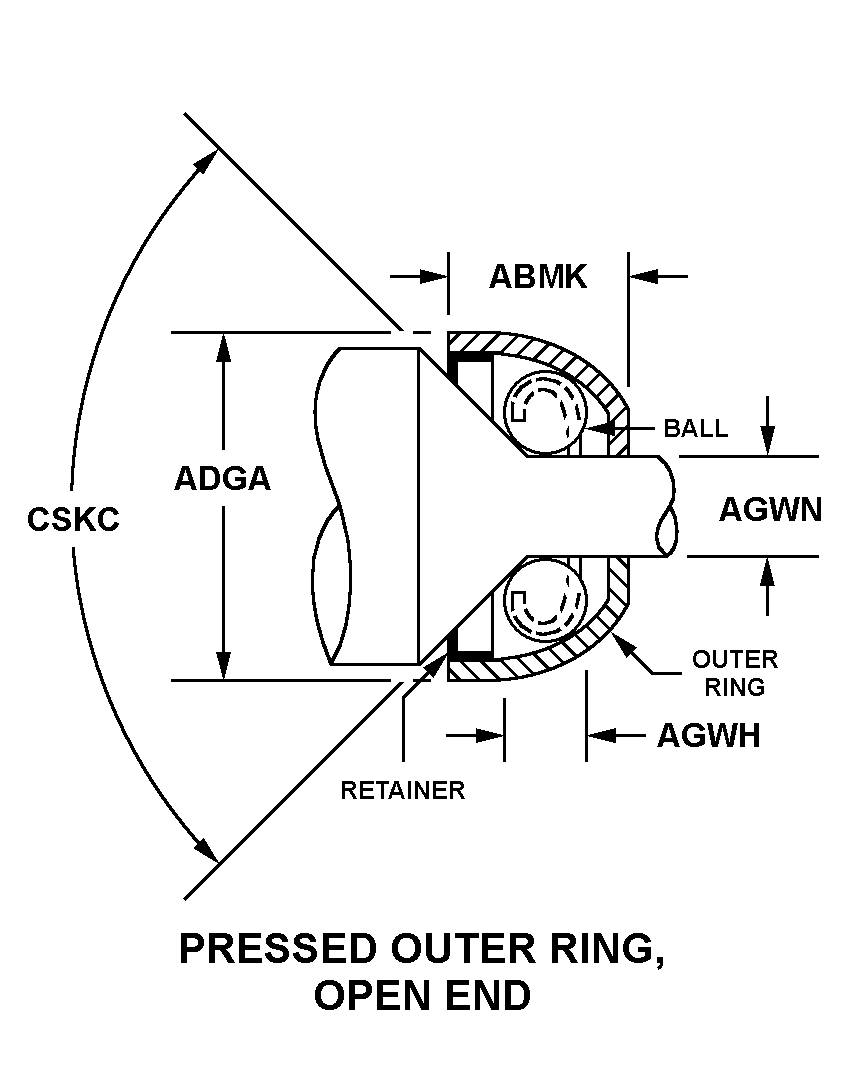

PRESSED OUTER RING OPEN END
Cross Reference | NSN 3110-00-542-1819
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20204DTX5E | 24617 | GENERAL MOTORS CORP |
| 20204DTX5E | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 20204DTX5E | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 9053605 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 3110-00-542-1819
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PRESSED OUTER RING OPEN END |
| OVERALL WIDTH | 14.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 20.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 47.0 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | ANGULAR |
| BEARING PRELOAD DESIGNATION | MEDIUM |
| SPECIAL FEATURES | PAIR OF BEARINGS. 25 DEG OR LESS ANGULARITY |
