Part Details | DUPLEX BALL BEARING
3110-00-548-5804 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Alternate Parts: VSN544HX8DB30, 114C2086, 3TAR2936157, 3TAR29-36-157, 3110-00-548-5804, 00-548-5804, 3110005485804, 005485804
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | OCT 15, 1974 | 00-548-5804 | 30213 ( BEARING, BALL, DUPLEX ) |
REFERENCE DRAWINGS & PICTURES

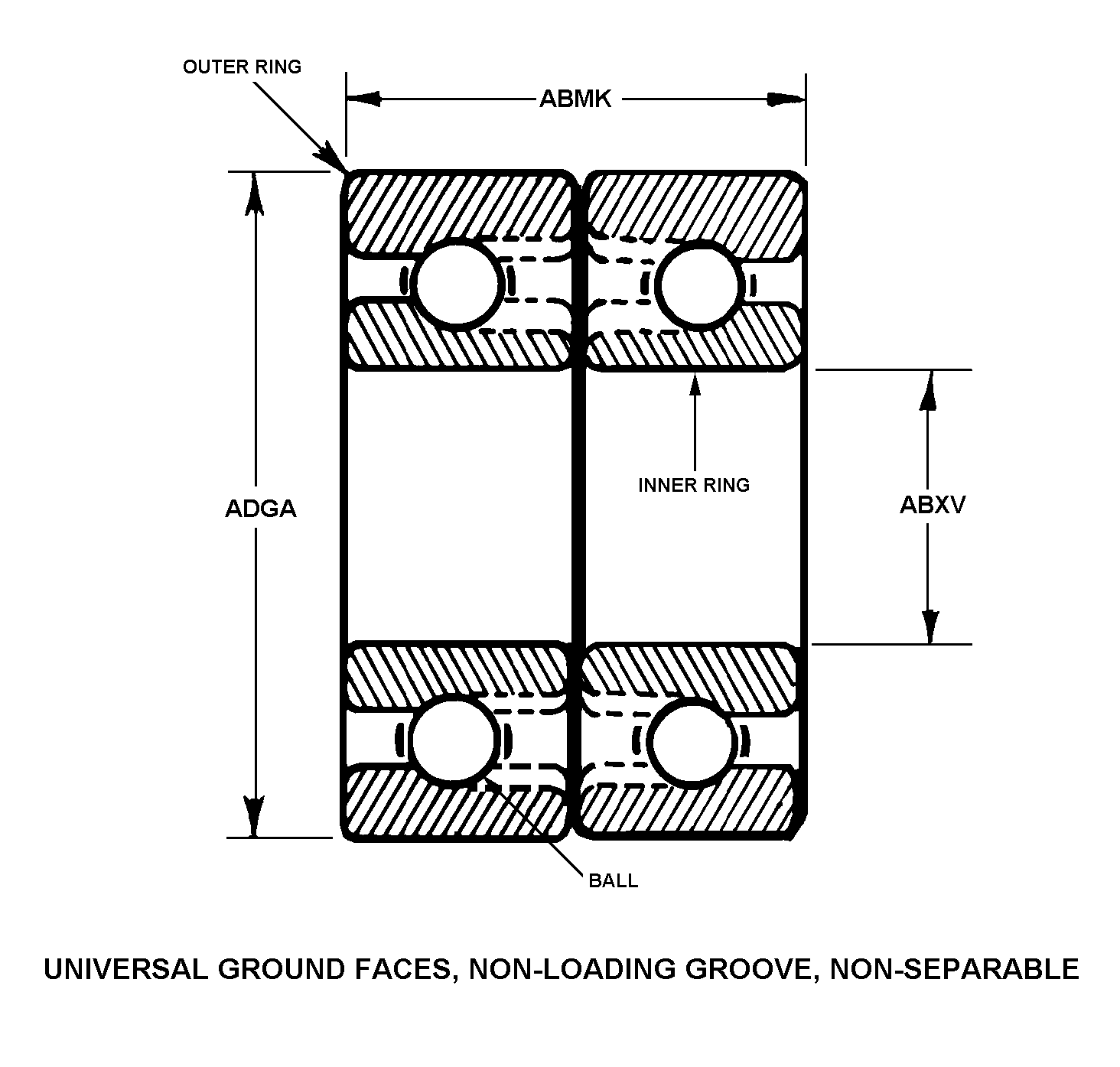

UNIVERSAL GROUND FACES, NON-LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-548-5804
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VSN544HX8DB30 | 70854 | BARDEN CORPORATION, THEDIV BARDEN PRECISION BEARINGS |
| 114C2086 | 05606 | GENERAL DYNAMICS-OTS, INC.DBA GD-OTS (WILLISTON) |
| 3TAR29-36-157 | 78118 | MPB CORPORATIONDBA TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-548-5804
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | UNIVERSAL GROUND FACES, NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.9140 INCHES NOMINAL |
| BORE DIAMETER | 1.8121 INCHES MINIMUM AND 1.8125 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.2496 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-6085 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| INTERNAL CLEARANCE | R0.0007 INCHES MINIMUM AND R0.0012 INCHES MAXIMUM |
| BEARING PRELOAD RATING | 30.0 POUNDS NOMINAL |
| SPECIAL FEATURES | BEARING CONSISTS OF TWO BEARINGS 0.2500 IN. WIDE AND INNER AND OUTER RING SPACERS 0.4140 IN. WIDE |
