NSN 3110-00-554-3254
Part Details | ANNULAR BALL BEARING
3110-00-554-3254 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 710155, 1377C, 1377-C, 2140122, 2140122X1U9, 2140122MILL3545, 2140122ANG5, 2140122, CT22EX1968RV, 2140122X1U9, 2140122MILL3545, 2140122ANG5, 3110-00-554-3254, 00-554-3254, 3110005543254, 005543254
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-554-3254 | 00014 ( BEARING, BALL, ANNULAR ) |

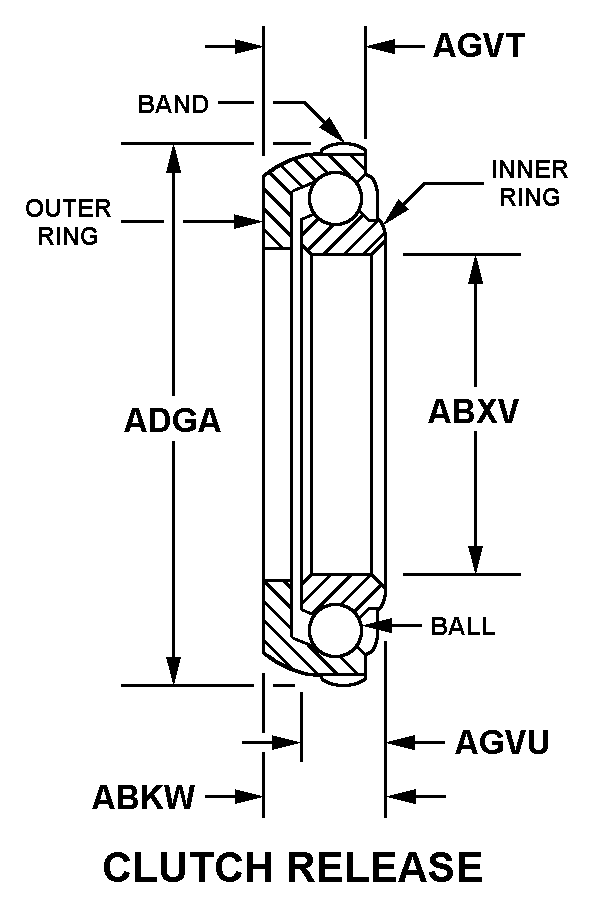

REFERENCE DRAWINGS & PICTURES
CLUTCH RELEASE
Cross Reference | NSN 3110-00-554-3254
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 710155 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
| 1377-C | 01212 | FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT |
| 2140122 | 24617 | GENERAL MOTORS CORP |
| 2140122X1U9 | 24617 | GENERAL MOTORS CORP |
| 2140122MILL3545 | 24617 | GENERAL MOTORS CORP |
| 2140122ANG5 | 24617 | GENERAL MOTORS CORP |
| 2140122 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| CT22EX1968RV | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 2140122X1U9 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 2140122MILL3545 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 2140122ANG5 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
Technical Data | NSN 3110-00-554-3254
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLUTCH RELEASE |
| OVERALL HEIGHT | 1.6093 INCHES NOMINAL |
| BORE DIAMETER | 1.3775 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.7344 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
