NSN 3110-00-555-5329
Part Details | ANNULAR BALL BEARING
3110-00-555-5329 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 909002, 909002, 909002, 2, 10002, 3110-00-555-5329, 00-555-5329, 3110005555329, 005555329
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-555-5329 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

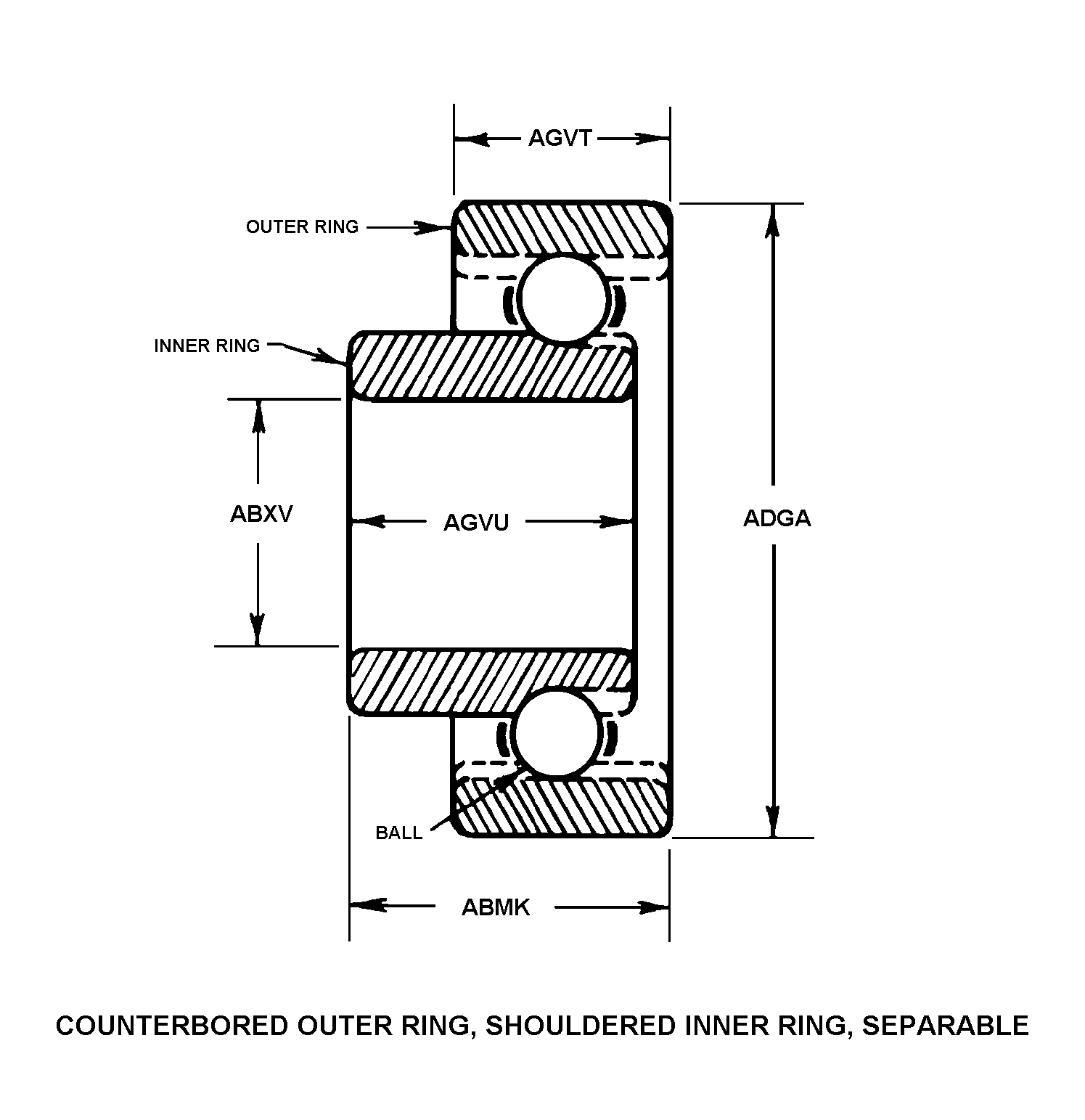

COUNTERBORED OUTER RING, SHOULDERED INNER RING, SEPARABLE
Cross Reference | NSN 3110-00-555-5329
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 909002 | 24617 | GENERAL MOTORS CORP |
| 909002 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 909002 | 53035 | NSK CORPBEARING DIV |
| 2 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| 10002 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-555-5329
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, SHOULDERED INNER RING, SEPARABLE |
| OVERALL WIDTH | 1.1350 INCHES MINIMUM AND 1.1550 INCHES MAXIMUM |
| BORE DIAMETER | 1.1899 INCHES MINIMUM AND 1.1905 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.9625 INCHES MINIMUM AND 2.9635 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.7700 INCHES NOMINAL |
| INNER RING WIDTH | 0.8700 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 25.0 DEGREES MAXIMUM |
| SPECIAL FEATURES | OUTER AND INNER RINGS COUNTERBORED |
