NSN 3110-00-559-1630
Part Details | THRUST BALL BEARING
3110-00-559-1630 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Alternate Parts: A35445, A3544-5, AR43065, AR43065, 3110-00-559-1630, 00-559-1630, 3110005591630, 005591630
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 11, 1974 | 00-559-1630 | 00019 ( BEARING, BALL, THRUST ) |
REFERENCE DRAWINGS & PICTURES

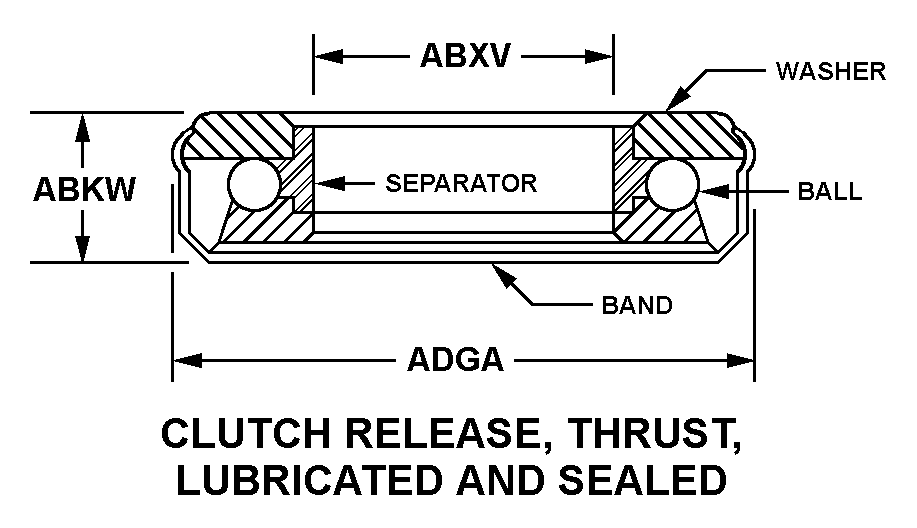

CLUTCH RELEASE, THRUST, LUBRICATED AND SEALED
Cross Reference | NSN 3110-00-559-1630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A3544-5 | 00658 | ABC ACQUISITION COMPANYDBA AETNA BEARING COMPANY |
| AR43065 | 75160 | DEERE & CO |
| AR43065 | 06021 | DEERE AND CO |
Technical Data | NSN 3110-00-559-1630
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLUTCH RELEASE, THRUST, LUBRICATED AND SEALED |
| OVERALL HEIGHT | 0.7450 INCHES MINIMUM AND 0.7550 INCHES MAXIMUM |
| BORE DIAMETER | 2.2490 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.3840 INCHES NOMINAL |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SIMPLIFIED DOUBLE ACTING |
| FEATURES PROVIDED | ALIGNING RING |
| SPECIAL FEATURES | WITH FLANGE 0.2900 IN. W,3.7960 IN. OD |
