NSN 3110-00-580-0705
Part Details | BEARING ROLLER RETAINER
3110-00-580-0705 A frame or inclosure which spaces and retains the rolling elements of a BEARING, ROLLER (as modified).
Alternate Parts: 2040401331, 204-040-133-1, 204040133001, 204-040-133-001, 2040401331, 204-040-133-1, 2040401331, 204-040-133-1, 3110-00-580-0705, 00-580-0705, 3110005800705, 005800705
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-580-0705 | 00033 ( RETAINER, ROLLER, BEARING ) |
REFERENCE DRAWINGS & PICTURES

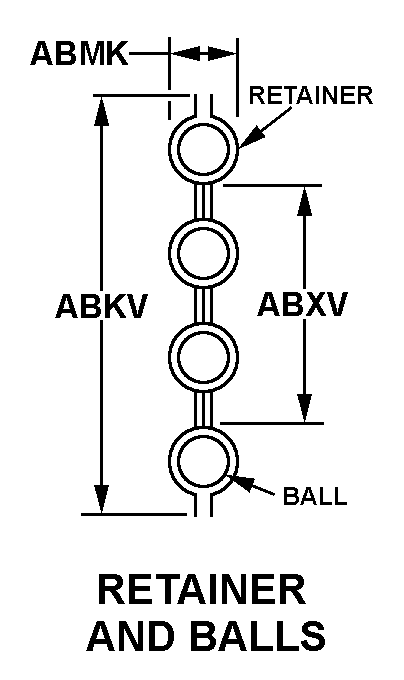

RETAINER AND BALLS
Cross Reference | NSN 3110-00-580-0705
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-040-133-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 204-040-133-001 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 204-040-133-1 | 80070 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 204-040-133-1 | 04614 | TEXTRON SYSTEMS CORPORATIONDBA TEXTRON DEFENSE SYSTEMS |
Technical Data | NSN 3110-00-580-0705
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RETAINER AND BALLS |
| OUTSIDE DIAMETER | 0.4390 INCHES MINIMUM AND 0.4440 INCHES MAXIMUM |
| OVERALL WIDTH | 0.8700 INCHES NOMINAL |
| BORE DIAMETER | 1.8330 INCHES MINIMUM AND 1.8350 INCHES MAXIMUM |
| RETAINER FABRICATION METHOD | MACHINED |
| RETAINER PIECE QUANTITY | 1 |
