NSN 3110-00-581-2719
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-581-2719 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 9671M26P09, 9671M26P08, 9272M55P01, 9272M55, 1538M14P01, R1834E107, 5RUH18347, 5RUH1834-7, 464618, AAVF9233RON101, AAVF9233RON-101, 3110-00-581-2719, 00-581-2719, 3110005812719, 005812719
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 19, 1974 | 00-581-2719 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

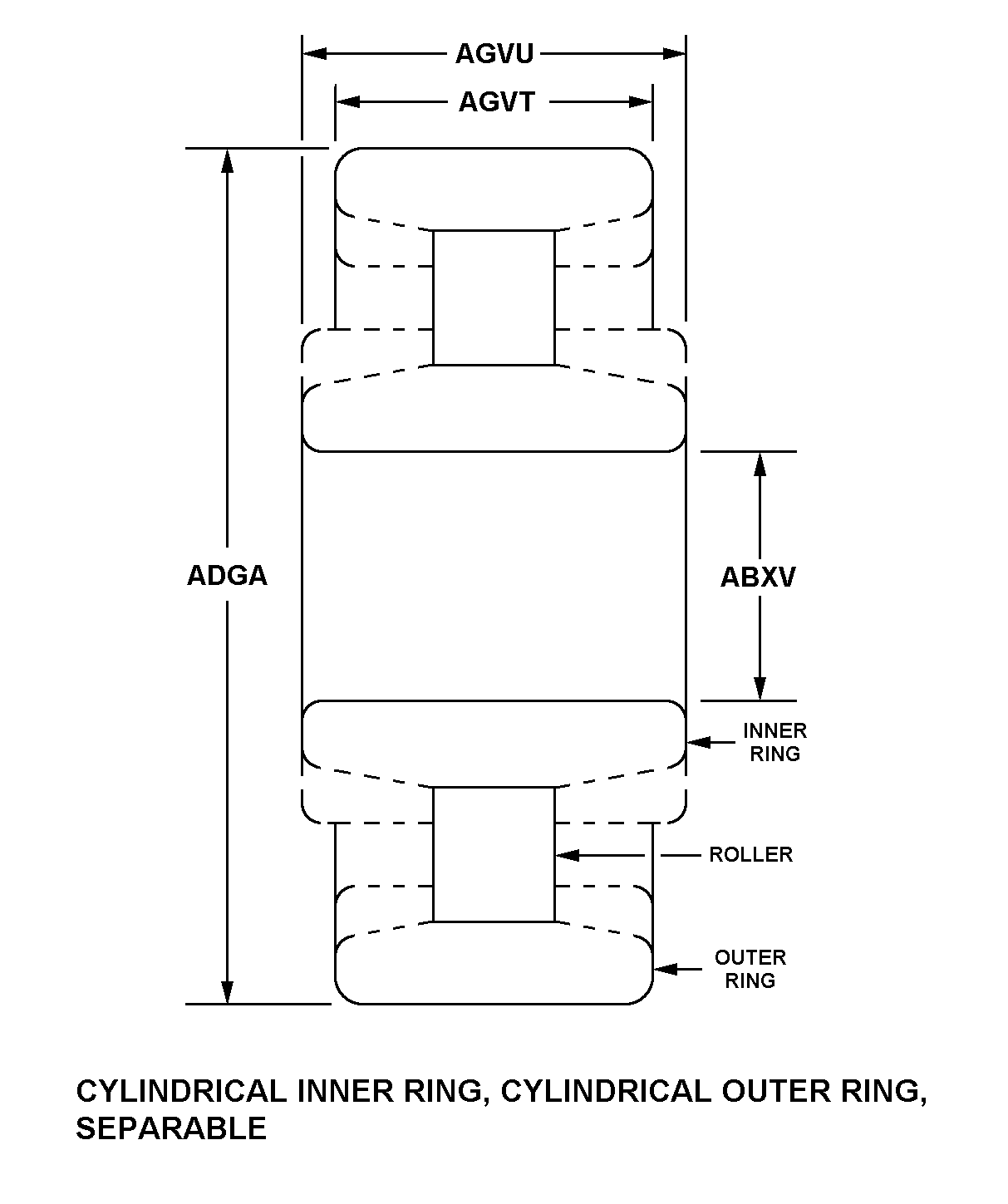

CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-581-2719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9671M26P09 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 9671M26P08 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 9272M55P01 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 9272M55 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 1538M14P01 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| R1834E107 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 5RUH1834-7 | 78118 | MPB CORPORATIONDBA TIMKEN AEROSPACE |
| 464618 | 52676 | SKF USA INC. |
| AAVF9233RON-101 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-581-2719
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE |
| BORE DIAMETER | 6.6175 INCHES MINIMUM AND 6.6179 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 8.4040 INCHES MINIMUM AND 8.4045 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.8940 INCHES MINIMUM AND 0.9000 INCHES MAXIMUM |
| INNER RING WIDTH | 2.2980 INCHES MINIMUM AND 2.3020 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | R0.0030 INCHES MINIMUM AND R0.0035 INCHES MAXIMUM |
| SPECIAL FEATURES | SILVER PLATE CAGE0.001-0.002 THK PER AMS 2410;OUTER RING FLANGED SIX PLACES LOCATED AS FOLLOWS TAB 1,3DEG 30MIN FROM TOP VERTICLE CL,TAB 2,61DEG TOTOP VERTICLE CL,TAB 3 126DEG TO TOP VERTICLE CL,TAB 4 183 DEG 30 MIN TO TOP VERTICLE CL,TAB 5 241 DEG TO TOP VERTICLE CL,TAB 6 306 DEG TO TOP VERTICLE CL;EA TAB 1.0250 NOM WIDE 1.0500 THK W/TWO HOLES 0.2800 NOM 0.2870 DIA THRU 90 DEG-110 DEG CSK TO PROVIDE MOUNTING CAPABILITY |
| END ITEM IDENTIFICATION | ACFT ENG TF-39 |
