Part Details | ANNULAR BALL BEARING
3110-00-585-4779 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 6725, 6725, 6725, 3110-00-585-4779, 00-585-4779, 3110005854779, 005854779
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-585-4779 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

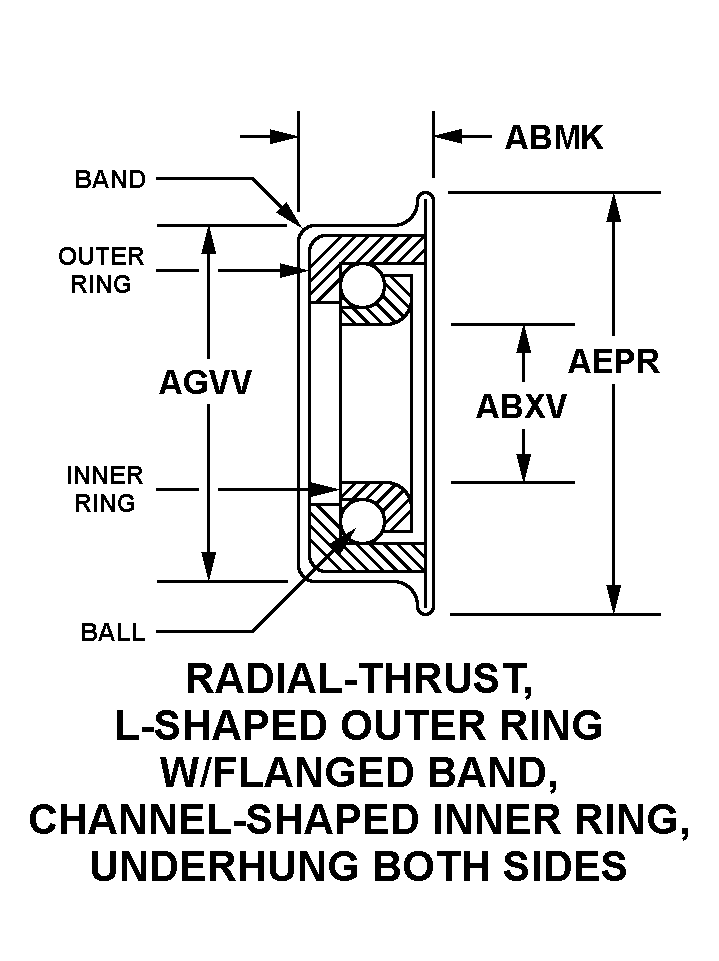

RADIAL-THRUST, L-SHAPED OUTER RING WITH FLANGED BAND, CHANNEL-SHAPED INNER RING, UNDERHUNG BOTH SIDES
Cross Reference | NSN 3110-00-585-4779
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6725 | 7L611 | BLAKO INC.DBA BLAKESLEE |
| 6725 | 43766 | SKF INDUSTRIES INCNICE BEARING PRODUCTS DIV |
| 6725 | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-585-4779
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RADIAL-THRUST, L-SHAPED OUTER RING WITH FLANGED BAND, CHANNEL-SHAPED INNER RING, UNDERHUNG BOTH SIDES |
| OVERALL WIDTH | 0.583838 INCHES MINIMUM AND 0.6038 INCHES MAXIMUM |
| BORE DIAMETER | 0.7500 INCHES MINIMUM AND 0.7550 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.9375 INCHES NOMINAL |
| OUTER RING WIDTH | 0.5838 INCHES MINIMUM AND 0.6038 INCHES MAXIMUM |
| INNER RING WIDTH | 0.3590 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 1.7500 INCHES MINIMUM AND 1.7550 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 25.0 DEGREES MAXIMUM |
