NSN 3110-00-585-4825
Part Details | ROD END ROLLER BEARING
3110-00-585-4825 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Alternate Parts: YD142, DM810A, DM8-10A, 3110-00-585-4825, 00-585-4825, 3110005854825, 005854825
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-585-4825 | 00050 ( BEARING, ROLLER, ROD END ) |
REFERENCE DRAWINGS & PICTURES
EXTERNALLY THREADED

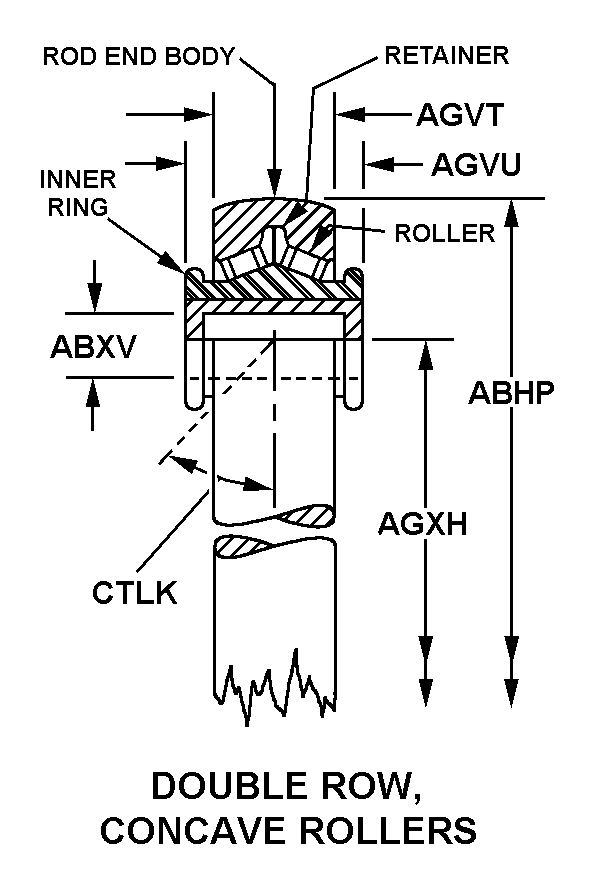

DOUBLE ROW, CONCAVE ROLLERS
Cross Reference | NSN 3110-00-585-4825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| YD142 | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| DM8-10A | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
Technical Data | NSN 3110-00-585-4825
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW, CONCAVE ROLLERS |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 3.9200 INCHES NOMINAL |
| BORE DIAMETER | 0.5000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.7200 INCHES NOMINAL |
| OUTER RING WIDTH | 0.6950 INCHES NOMINAL |
| INNER RING WIDTH | 1.0000 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 3.0600 INCHES NOMINAL |
| SHANK STYLE | EXTERNALLY THREADED |
| SHANK DIAMETER | 0.6250 INCHES NOMINAL |
| SHANK THREAD LENGTH | 1.5100 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| SHIELD QUANTITY | 2 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | FLUSH TYPE LUBRICANT FITTING |
