NSN 3110-00-592-7241
Part Details | THRUST BALL BEARING
3110-00-592-7241 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Alternate Parts: 607, 3110-00-592-7241, 00-592-7241, 3110005927241, 005927241
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 03, 1975 | 00-592-7241 | 00019 ( BEARING, BALL, THRUST ) |
REFERENCE DRAWINGS & PICTURES

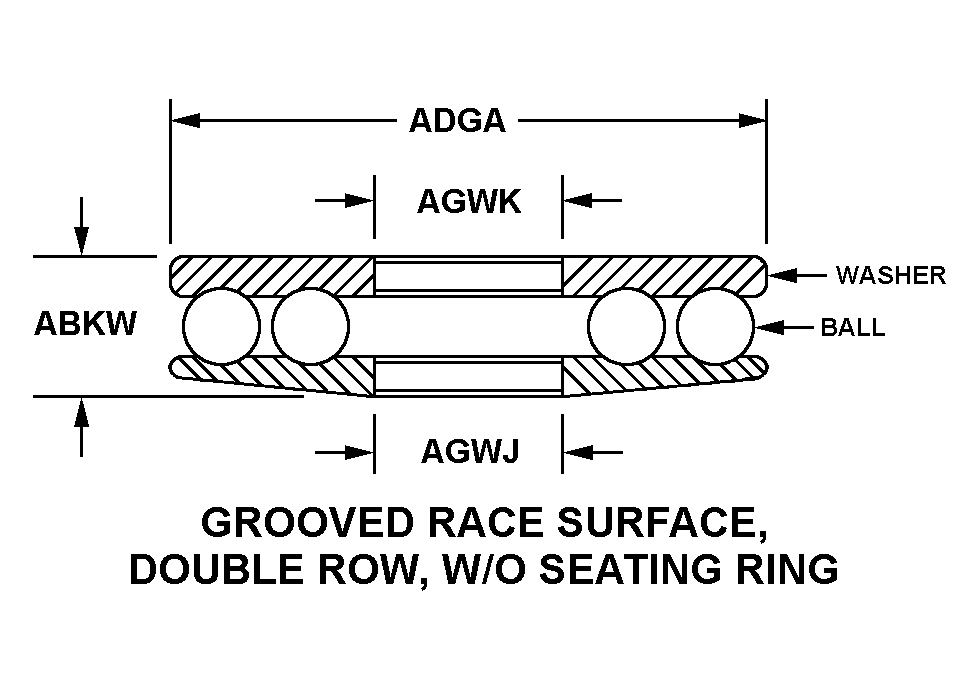

GROOVED RACE SURFACE, DOUBLE ROW, W/O SEATING RING
Cross Reference | NSN 3110-00-592-7241
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 607 | 21760 | SCHATZ BEARING CORPORATION |
Technical Data | NSN 3110-00-592-7241
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVED RACE SURFACE, DOUBLE ROW, W/O SEATING RING |
| OVERALL HEIGHT | 0.5463 INCHES MINIMUM AND 0.5473 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.6552 INCHES MINIMUM AND 1.6572 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 0.7500 INCHES MINIMUM AND 0.7550 INCHES MAXIMUM |
| LARGEST BORE DIAMETER | 0.7212 INCHES NOMINAL |
| SURFACE FINISH | UNGROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | DOUBLE |
| END ITEM IDENTIFICATION | GROUND SERVICING EQUIPMENT |
