NSN 3110-00-607-7735
Part Details | FAN AND WATER PUMP BEARING
3110-00-607-7735 A bearing consisting of either a double row of balls, or a combination of a ball and roller mounted on a shaft having a seal on one or both ends of the outer ring. The shaft has integrally formed raceways for the balls, thereby eliminating the necessity of inner rings. Designed primarily for fan and water pump applications.
Alternate Parts: AB009041325, AB009041325, 941325, 9-41325, 0941325, 09-41325, 98F209K2240, 41325, F209K2240, F209K02240, 0941325, 09-41325, 3110-00-607-7735, 00-607-7735, 3110006077735, 006077735
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-607-7735 | 35625 ( BEARING, FAN AND WATER PUMP ) |
REFERENCE DRAWINGS & PICTURES

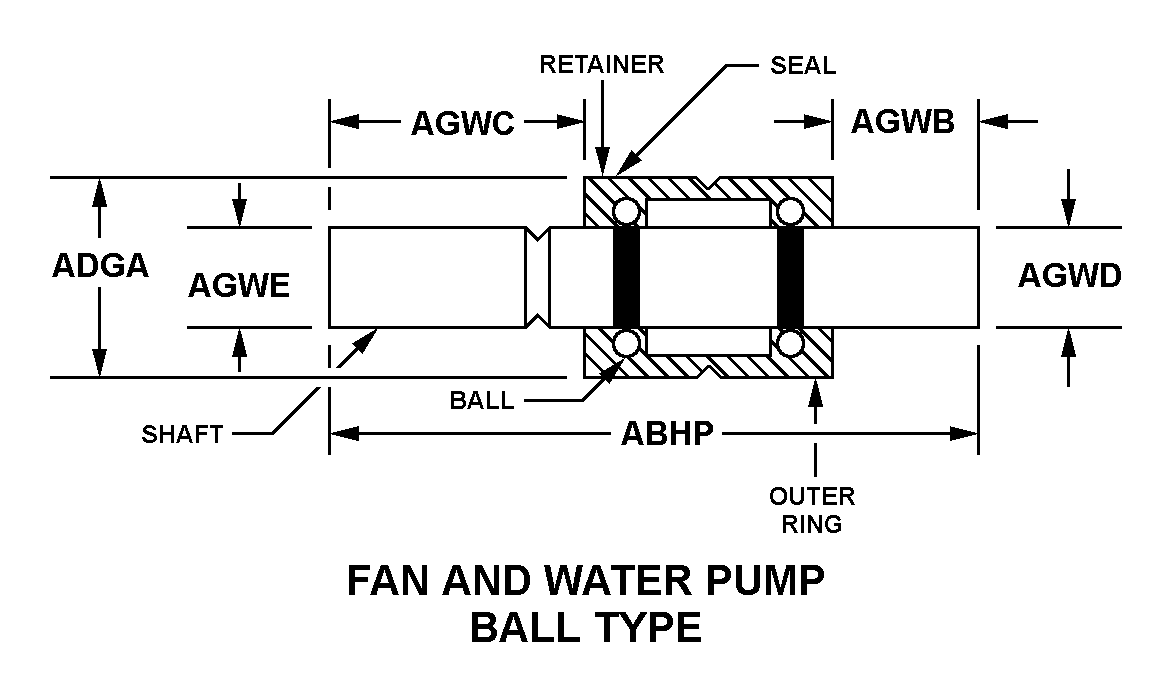

FAN AND WATER PUMP BALL TYPE
Cross Reference | NSN 3110-00-607-7735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AB009041325 | 52993 | AR BEE CORP |
| AB009041325 | 3NNX8 | BRIGHTON CROMWELL LLC |
| 9-41325 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| 09-41325 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| 98F209K2240 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| 41325 | 78640 | MITSUBISHI CATERPILLAR FORKLIFTAMERICA, INC |
| F209K2240 | 14351 | TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV |
| F209K02240 | 14351 | TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV |
| 09-41325 | 66654 | TVH PARTS CO. |
Technical Data | NSN 3110-00-607-7735
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FAN AND WATER PUMP BALL TYPE |
| OVERALL LENGTH | 3.9062 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.5000 INCHES NOMINAL |
| SHORT END SHAFT LENGTH | 0.8750 INCHES NOMINAL |
| LONG END SHAFT LENGTH | 0.9062 INCHES NOMINAL |
| SHORT END SHAFT DIAMETER | 0.7465 INCHES NOMINAL |
| LONG END SHAFT DIAMETER | 0.7465 INCHES NOMINAL |
| FEATURES PROVIDED | LUBRICATION GROOVE |
