NSN 3110-00-609-6205
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-609-6205 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: M1311U, 3110-00-609-6205, 00-609-6205, 3110006096205, 006096205
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 30, 1975 | 00-609-6205 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

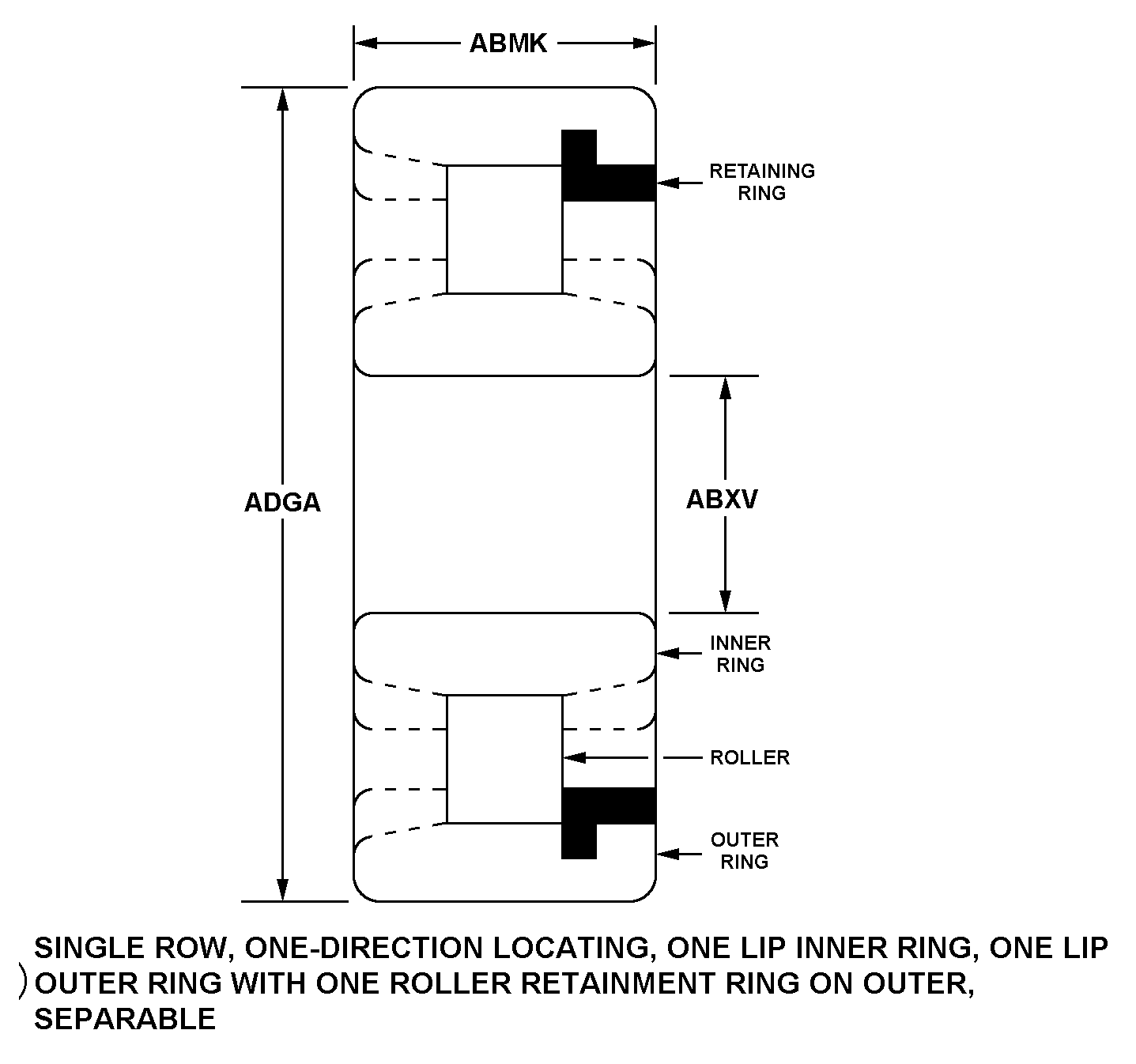

SINGLE ROW, ONE-DIRECTION LOCATING, ONE LIP INNER RING, ONE LIP OUTER RING WITH ONE ROLLER RETAINMENT RING ON OUTER, SEPARABLE
Cross Reference | NSN 3110-00-609-6205
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M1311U | 19382 | REXNORD INDUSTRIES, LLCDIV LINK-BELT BEARING OPERATION |
Technical Data | NSN 3110-00-609-6205
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, ONE-DIRECTION LOCATING, ONE LIP INNER RING, ONE LIP OUTER RING WITH ONE ROLLER RETAINMENT RING ON OUTER, SEPARABLE |
| OVERALL WIDTH | 1.1417 INCHES NOMINAL |
| BORE DIAMETER | 2.1654 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 4.7244 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | FORGED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
