NSN 3110-00-614-9397
Part Details | INNER BEARING RING
3110-00-614-9397 The inner component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: AB009041959, AB009041959, 108875, 108875, 526736, 0941959, 09-41959, 41959, 400065, 0941959, 09-41959, 3110-00-614-9397, 00-614-9397, 3110006149397, 006149397
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-614-9397 | 00028 ( RING, BEARING, INNER ) |
REFERENCE DRAWINGS & PICTURES

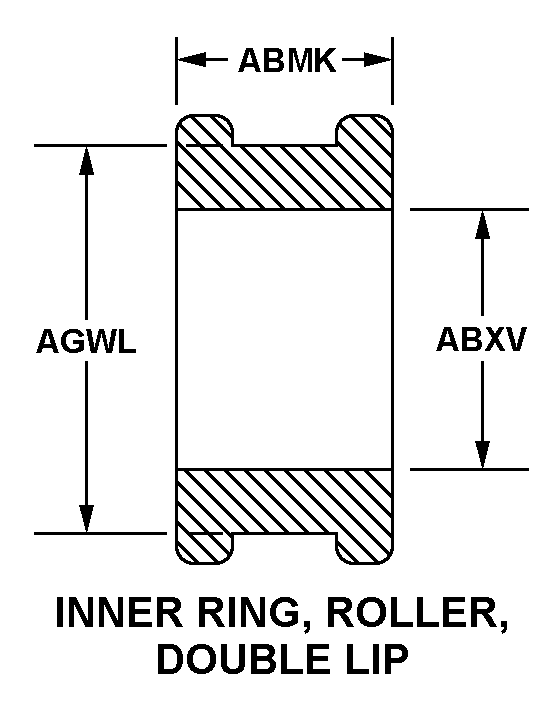

INNER RING, ROLLER, DOUBLE LIP
Cross Reference | NSN 3110-00-614-9397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AB009041959 | 52993 | AR BEE CORP |
| AB009041959 | 3NNX8 | BRIGHTON CROMWELL LLC |
| 108875 | 30076 | HYSTER-YALE GROUP, INC. |
| 108875 | 04627 | HYSTER-YALE GROUP, INC. |
| 526736 | 83299 | HYSTER-YALE GROUP, INC.DBA YALE MATERIALS HANDLING |
| 09-41959 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| 41959 | 78640 | MITSUBISHI CATERPILLAR FORKLIFTAMERICA, INC |
| 400065 | 77640 | TRW INCDBA COMMERCIAL STEERING DIVISION |
| 09-41959 | 66654 | TVH PARTS CO. |
Technical Data | NSN 3110-00-614-9397
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | INNER RING, ROLLER, DOUBLE LIP |
| OVERALL WIDTH | 0.6320 INCHES NOMINAL |
| BORE DIAMETER | 1.1060 INCHES NOMINAL |
| SMALLEST OUTSIDE DIAMETER | 2.2050 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SPECIAL FEATURES | DRILL TWO 1/8 DIA HOLES AT45 DEG ANGLE 59/64 IN. FROM THE ID ON THE OUTER EDGE |
