NSN 3110-00-616-5476
Part Details | AIRFRAME BALL BEARING
3110-00-616-5476 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Alternate Parts: MS2764816, MS27648-16, KP16BSNFC, KP16BS FS464, MS2764816, MS27648-16, GB520CU16, KP16BS, MS2764816, MS27648-16, AS27648, KP16BSA1488, KP16BS FS464, KP16 BS16, 3110-00-616-5476, 00-616-5476, 3110006165476, 006165476
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | FEB 15, 1975 | 00-616-5476 | 00041 ( BEARING, BALL, AIRFRAME ) |

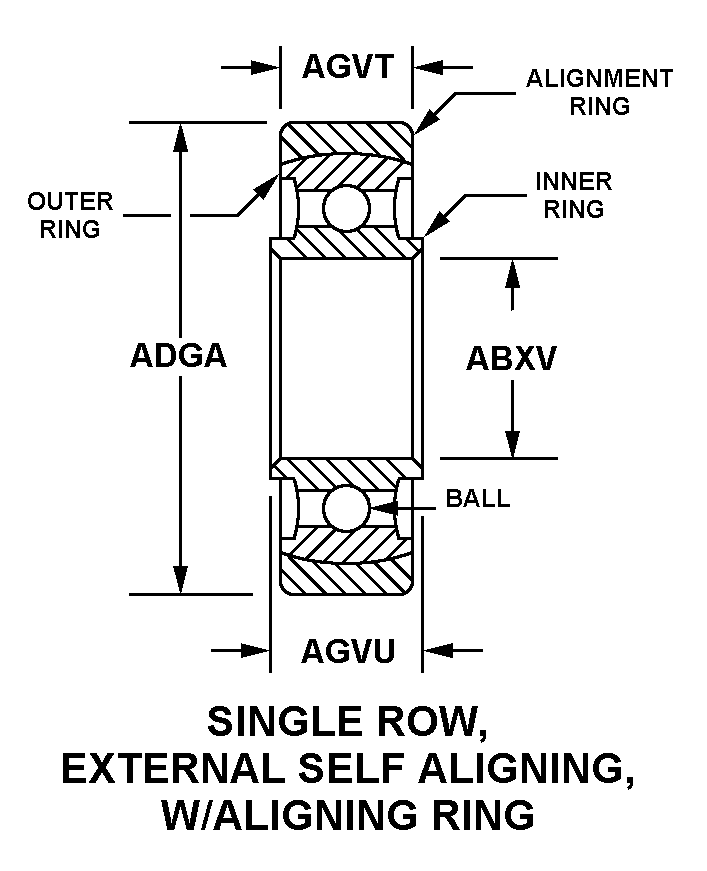

REFERENCE DRAWINGS & PICTURES
SINGLE ROW, EXTERNAL SELF ALIGNING, W/ALIGNING RING
Cross Reference | NSN 3110-00-616-5476
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27648-16 | 14153 | DEFENSE LOGISTICS AGENCYDBA DEFENSE SUPPLY CENTER |
| KP16BSNFC | 06144 | INDUSTRIAL TECTONICS BEARINGSCORPORATION |
| KP16BS FS464 | 06144 | INDUSTRIAL TECTONICS BEARINGSCORPORATION |
| MS27648-16 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| GB520CU16 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| KP16BS | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| MS27648-16 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS27648 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| KP16BSA1488 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| KP16BS FS464 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| KP16 BS16 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-616-5476
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, EXTERNAL SELF ALIGNING, W/ALIGNING RING |
| BORE DIAMETER | 0.9990 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.9365 INCHES MINIMUM AND 1.9375 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| INNER RING WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| LOAD DIRECTION | RADIAL |
| FEATURES PROVIDED | ALIGNING RING |
| SPECIAL FEATURES | 80 PCT FULL OF SPECIFIED LUBRICANT,7 DEGREE 25 MINUTE SELF ALIGNMENT IN EITHER DIRECTION |
