NSN 3110-00-620-4919
Part Details | THRUST BALL BEARING
3110-00-620-4919 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Alternate Parts: 3110-00-620-4919, 00-620-4919, 3110006204919, 006204919
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-620-4919 | 00019 ( BEARING, BALL, THRUST ) |
REFERENCE DRAWINGS & PICTURES

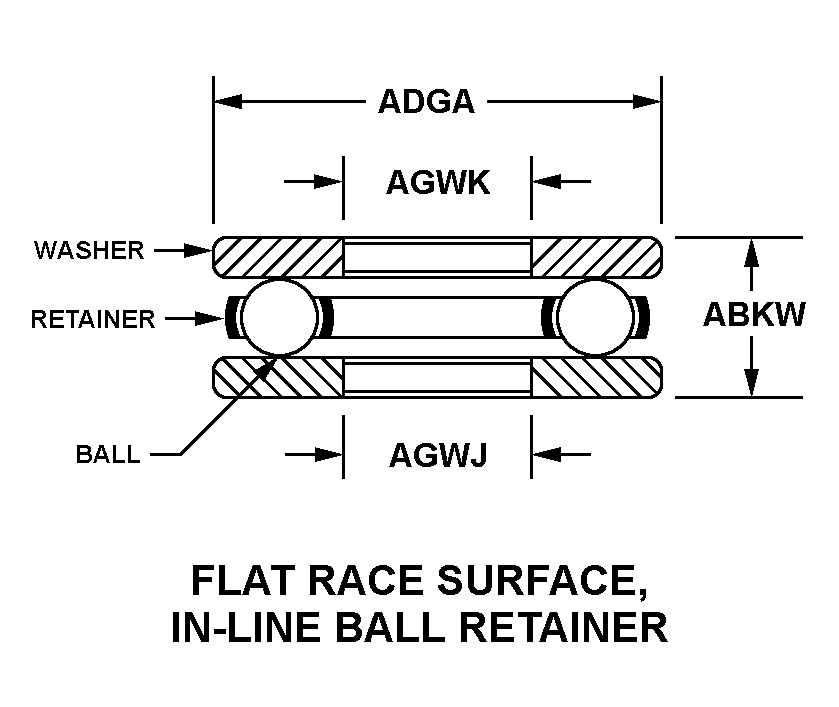

FLAT RACE SURFACE, IN LINE BALL RETAINER
Cross Reference | NSN 3110-00-620-4919
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 3110-00-620-4919
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLAT RACE SURFACE, IN LINE BALL RETAINER |
| OVERALL HEIGHT | 0.7060 INCHES MINIMUM AND 0.7090 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.5425 INCHES MINIMUM AND 3.5433 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 2.5585 INCHES MINIMUM AND 2.5591 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
| SPECIAL FEATURES | ONE WASHER W/RETAINER AND BALL ASSEMBLY ONLY |
