NSN 3110-00-626-8304
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-626-8304 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: R1560TM, 8115584, 2CE4884, R1560TM, 8115584, 2CE4884, CL5207BM103, CL5207BM102, 67AX276, 67AX294, 10945863, 3110-00-626-8304, 00-626-8304, 3110006268304, 006268304
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-626-8304 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

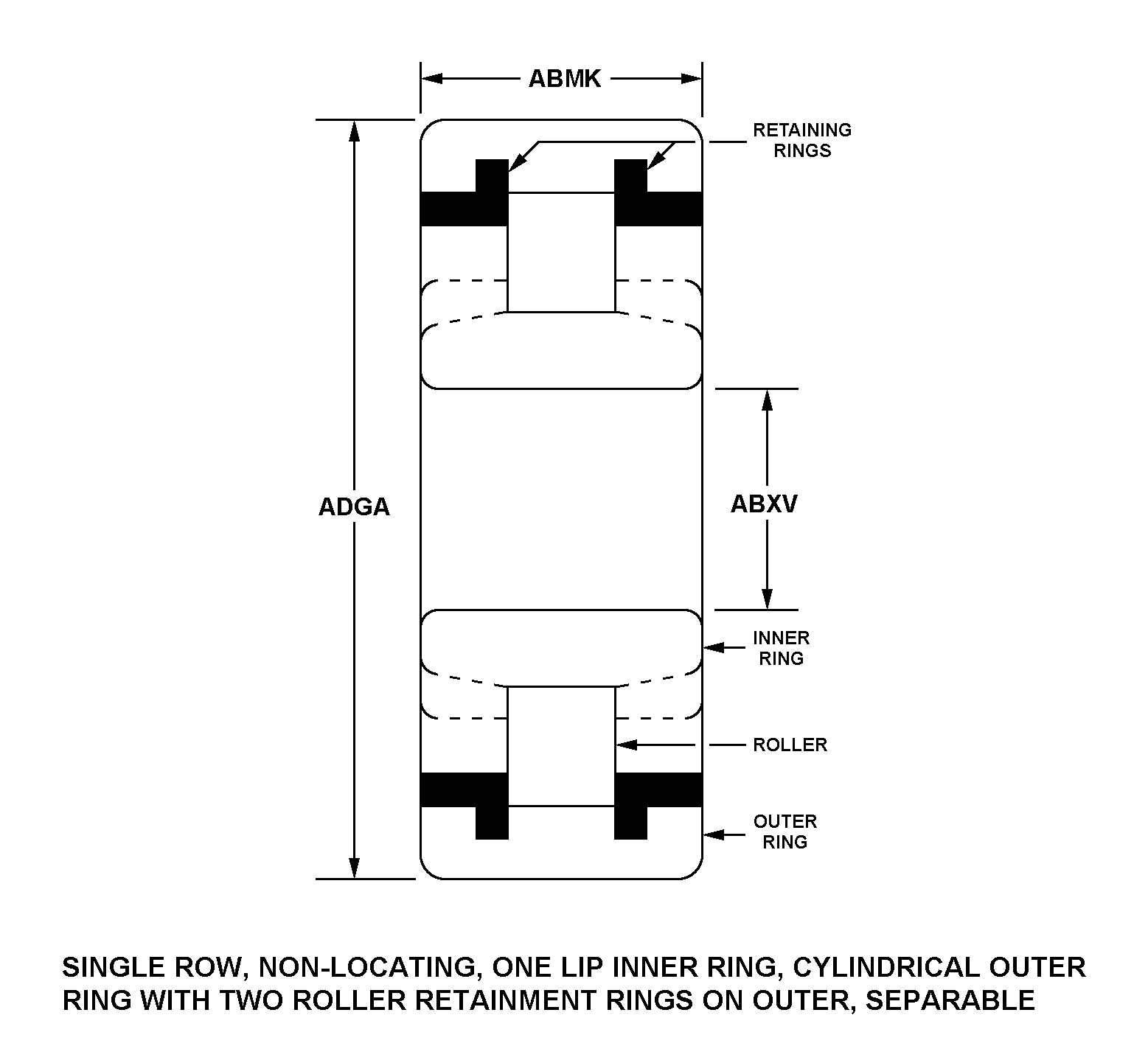

SINGLE ROW, NON-LOCATING, ONE LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER,SEPARABLE
Cross Reference | NSN 3110-00-626-8304
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R1560TM | 24617 | GENERAL MOTORS CORP |
| 8115584 | 24617 | GENERAL MOTORS CORP |
| 2CE4884 | 24617 | GENERAL MOTORS CORP |
| R1560TM | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 8115584 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 2CE4884 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| CL5207BM103 | 36479 | LIPE CORP |
| CL5207BM102 | 36479 | LIPE CORP |
| 67AX276 | 76040 | MACK TRUCKS INCPARTS OPN |
| 67AX294 | 89619 | MACK TRUCKS, INC.DBA MACUNGIE OPERATIONS |
| 10945863 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-626-8304
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, NON-LOCATING, ONE LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER,SEPARABLE |
| OVERALL WIDTH | 0.9449 INCHES NOMINAL |
| BORE DIAMETER | 1.3125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.8346 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | R0.0025 INCHES MINIMUM AND R0.0037 INCHES MAXIMUM |
