NSN 3110-00-627-1192
Part Details | ANNULAR BALL BEARING
3110-00-627-1192 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 100812AG, 1008-12AG, SK287, 100812AG, 1008-12AG, SK287, 3110-00-627-1192, 00-627-1192, 3110006271192, 006271192
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-627-1192 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

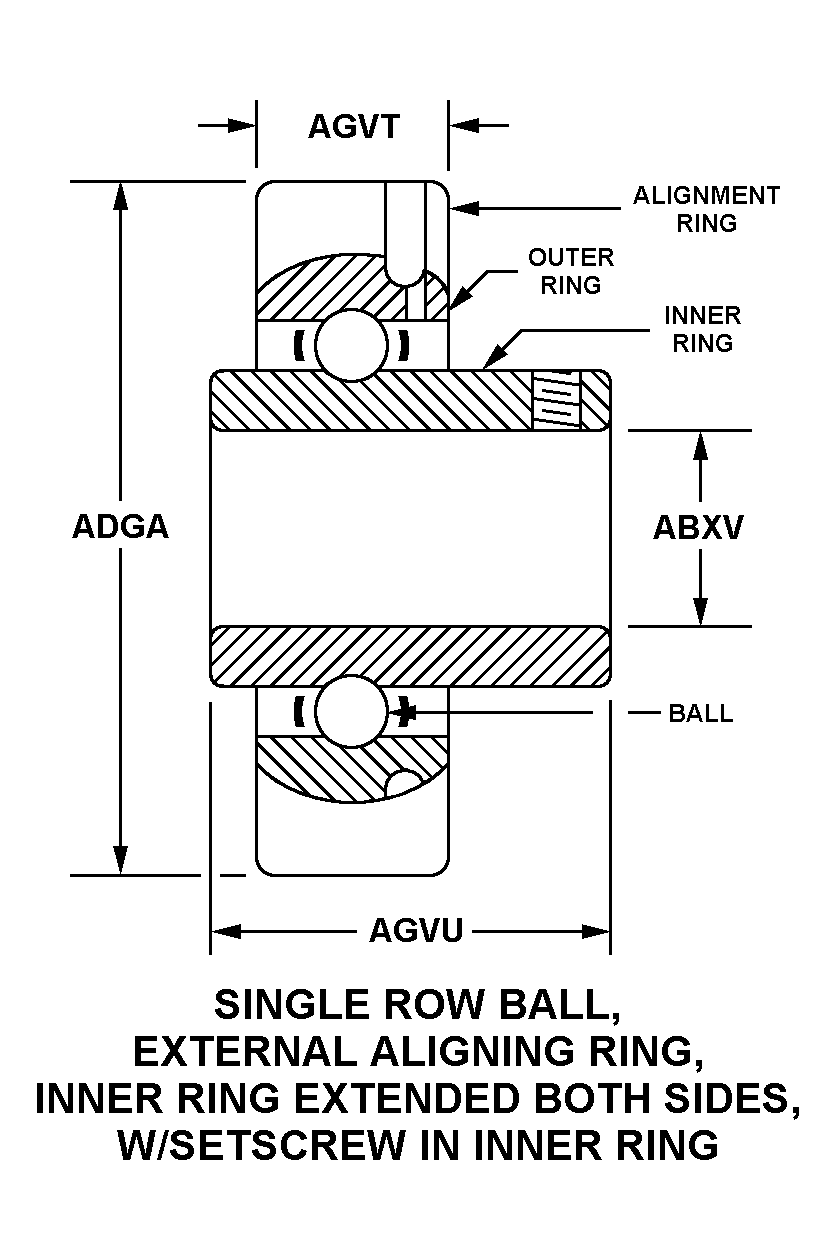

SINGLE ROW BALL, EXTERNAL ALIGNING RING, INNER RING EXTENDED BOTH SIDES, WITH SETSCREW IN INNER RING
Cross Reference | NSN 3110-00-627-1192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1008-12AG | 99300 | HARDING-WATERCRAFT INC |
| SK287 | 99300 | HARDING-WATERCRAFT INC |
| 1008-12AG | 63504 | PALFINGER MARINE USA INC |
| SK287 | 63504 | PALFINGER MARINE USA INC |
Technical Data | NSN 3110-00-627-1192
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW BALL, EXTERNAL ALIGNING RING, INNER RING EXTENDED BOTH SIDES, WITH SETSCREW IN INNER RING |
| BORE DIAMETER | 1.7500 INCHES MINIMUM AND 1.7505 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.8745 INCHES MINIMUM AND 3.8750 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.1880 INCHES NOMINAL |
| INNER RING WIDTH | 2.4950 INCHES MINIMUM AND 2.5000 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | DOD-G-24508 MIL SPEC SINGLE MATERIAL RESPONSE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | LABYRINTH |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | ONE FELT ENCLOSED SEAL,ONE SYNTHETIC RUBBER RING TYPE SEA+ AND GROOVE IN BORE ON SET SCREW SIDE,OD OF INNER RING SHOULDERED TO A DIA OF 2.2500 IN. ON SIDE OPPOSITE SET SCREW,SELECTED,CLASSIFIED AND TESTED BY ASSY MFR AT HIS PLANT |
