NSN 3110-00-633-6055
Part Details | INNER BEARING RING
3110-00-633-6055 The inner component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 56865, 56865, D56865, 1R4016, IR4016, 3110-00-633-6055, 00-633-6055, 3110006336055, 006336055
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-633-6055 | 00028 ( RING, BEARING, INNER ) |
REFERENCE DRAWINGS & PICTURES

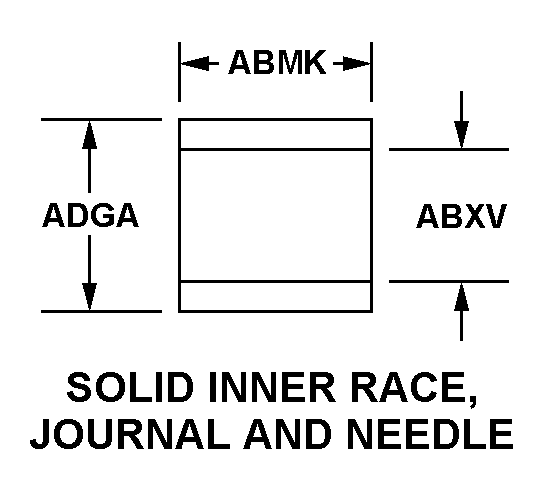

SOLID INNER RACE, JOURNAL AND NEEDLE
Cross Reference | NSN 3110-00-633-6055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 56865 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| 56865 | 23926 | KOMATSU AMERICA INTL CO |
| D56865 | 23926 | KOMATSU AMERICA INTL CO |
| 1R4016 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| IR4016 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
Technical Data | NSN 3110-00-633-6055
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID INNER RACE, JOURNAL AND NEEDLE |
| OVERALL WIDTH | 1.0000 INCHES NOMINAL |
| BORE DIAMETER | 2.5000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.7500 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
