NSN 3110-00-663-8929
Part Details | ANNULAR BALL BEARING
3110-00-663-8929 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 5870, 16164061, 1616406-1, 5870, 5870, 3110-00-663-8929, 00-663-8929, 3110006638929, 006638929
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-663-8929 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

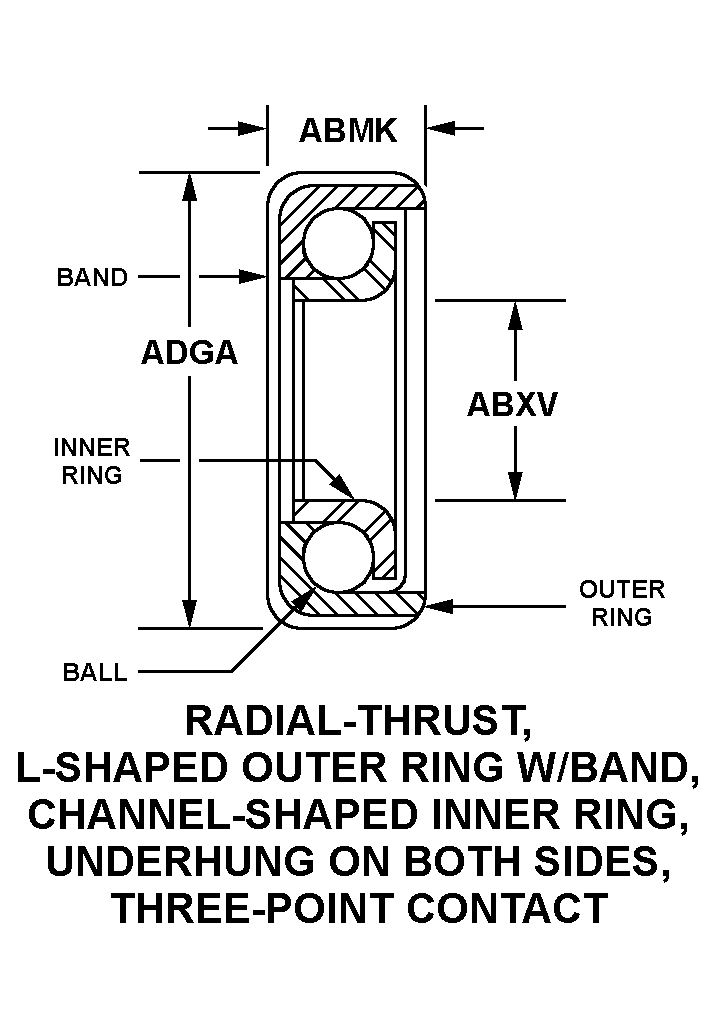

RADIAL-THRUST, L-SHAPED OUTER RING WITH BAND, CHANNEL-SHAPED INNER RING UNDERHUNG ON BOTH SIDES, THREE-POINT CONTACT
Cross Reference | NSN 3110-00-663-8929
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5870 | 26840 | HALE PRODUCTS, INC. |
| 1616406-1 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 5870 | 43766 | SKF INDUSTRIES INCNICE BEARING PRODUCTS DIV |
| 5870 | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-663-8929
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RADIAL-THRUST, L-SHAPED OUTER RING WITH BAND, CHANNEL-SHAPED INNER RING UNDERHUNG ON BOTH SIDES, THREE-POINT CONTACT |
| OVERALL WIDTH | 0.3550 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| BORE DIAMETER | 0.5000 INCHES MINIMUM AND 0.5050 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.2500 INCHES MINIMUM AND 1.2550 INCHES MAXIMUM |
| LUBRICATION MATERIAL | LUBRICANT |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 25.0 DEGREES MINIMUM |
| SPECIAL FEATURES | OUTER BAND RETAINS ASSEMBLED RACES |
