NSN 3110-00-670-0240
Part Details | ANNULAR BALL BEARING
3110-00-670-0240 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 7666791, 766679-1, 1668431, 166843-1, 16684231, 1668423-1, 3110-00-670-0240, 00-670-0240, 3110006700240, 006700240
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-670-0240 | 00014 ( BEARING, BALL, ANNULAR ) |

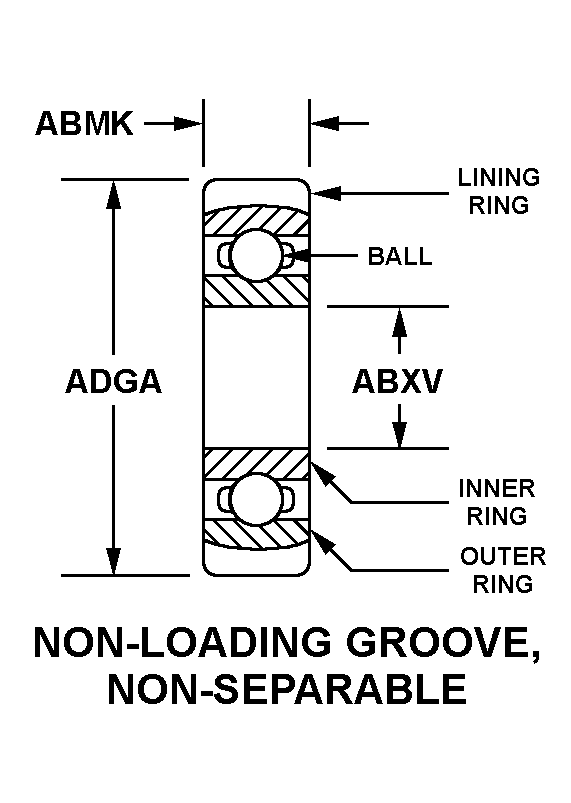

REFERENCE DRAWINGS & PICTURES
NON-LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-670-0240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 766679-1 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 166843-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 1668423-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 3110-00-670-0240
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 1.9900 INCHES MINIMUM AND 2.0000 INCHES MAXIMUM |
| BORE DIAMETER | 11.3111 INCHES MINIMUM AND 11.3125 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 15.0609 INCHES MINIMUM AND 15.0625 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| LOAD DIRECTION | RADIAL |
| FEATURES PROVIDED | ALIGNING RING |
