NSN 3110-00-670-4859
Part Details | NEEDLE ROLLER BEARING
3110-00-670-4859 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Alternate Parts: 7544892, M026N, MI21N, M026N, MI21N, 3110-00-670-4859, 00-670-4859, 3110006704859, 006704859
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-670-4859 | 00051 ( BEARING, ROLLER, NEEDLE ) |

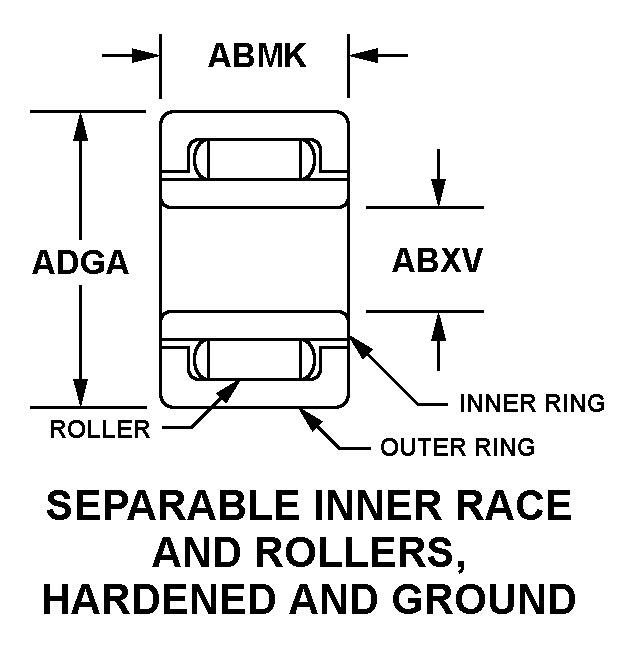

REFERENCE DRAWINGS & PICTURES
SEPARABLE INNER RACE AND ROLLERS, HARDENED AND GROUND
Cross Reference | NSN 3110-00-670-4859
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7544892 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| M026N | 39317 | MCGILL MANUFACTURING COMPANY INCUSE CAGE CODE 92563 FOR CATALOGING. |
| MI21N | 39317 | MCGILL MANUFACTURING COMPANY INCUSE CAGE CODE 92563 FOR CATALOGING. |
| M026N | 92563 | MCGILL MANUFACTURING COMPANY, INC. |
| MI21N | 92563 | MCGILL MANUFACTURING COMPANY, INC. |
Technical Data | NSN 3110-00-670-4859
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SEPARABLE INNER RACE AND ROLLERS, HARDENED AND GROUND |
| OVERALL WIDTH | 1.0000 INCHES NOMINAL |
| BORE DIAMETER | 1.3125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.1875 INCHES NOMINAL |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
