NSN 3110-00-675-4067
Part Details | BEARING RETAINING PLATE
3110-00-675-4067 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: 5711913, 571191-3, 5711913, 571191-3, 3110-00-675-4067, 00-675-4067, 3110006754067, 006754067
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-675-4067 | 22293 ( PLATE, RETAINING, BEARING ) |

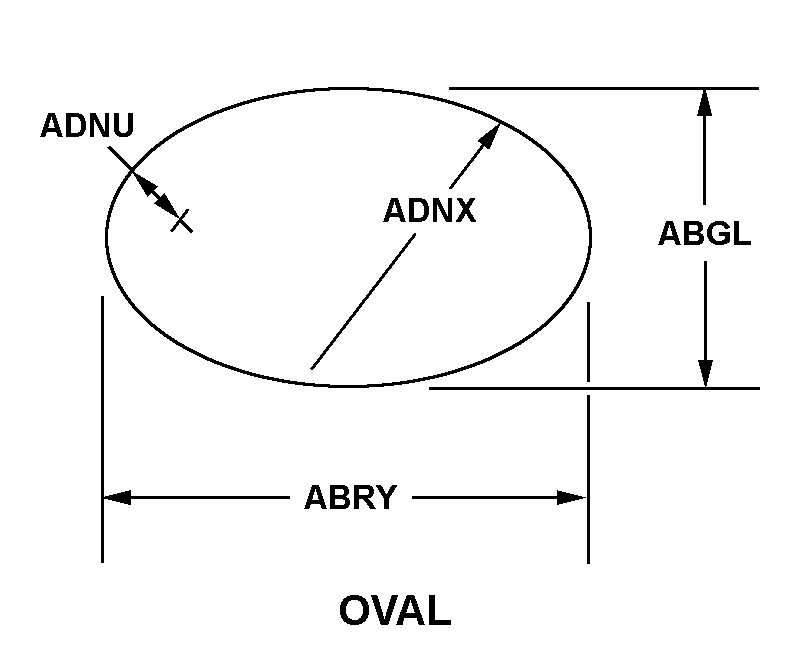

REFERENCE DRAWINGS & PICTURES
FLAT W/APERTURE
VERTICAL CENTERLINE
OVAL
Cross Reference | NSN 3110-00-675-4067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 571191-3 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
| 571191-3 | 20418 | DRS SUSTAINMENT SYSTEMS, INC.Use CAGE Code 98255 for cataloging |
Technical Data | NSN 3110-00-675-4067
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OVAL |
| CROSS-SECTIONAL SHAPE STYLE | FLAT W/APERTURE |
| APERTURE DIAMETER | 0.765 INCHES NOMINAL |
| OVERALL THICKNESS | 0.051 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.171 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | 5 VERTICAL CENTERLINE |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.301 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.301 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG BASE | 0.602 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG HEIGHT | 0.602 INCHES NOMINAL |
