NSN 3110-00-678-0408
Part Details | ANNULAR BALL BEARING
3110-00-678-0408 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 909067, 909067, 3110-00-678-0408, 00-678-0408, 3110006780408, 006780408
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-678-0408 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

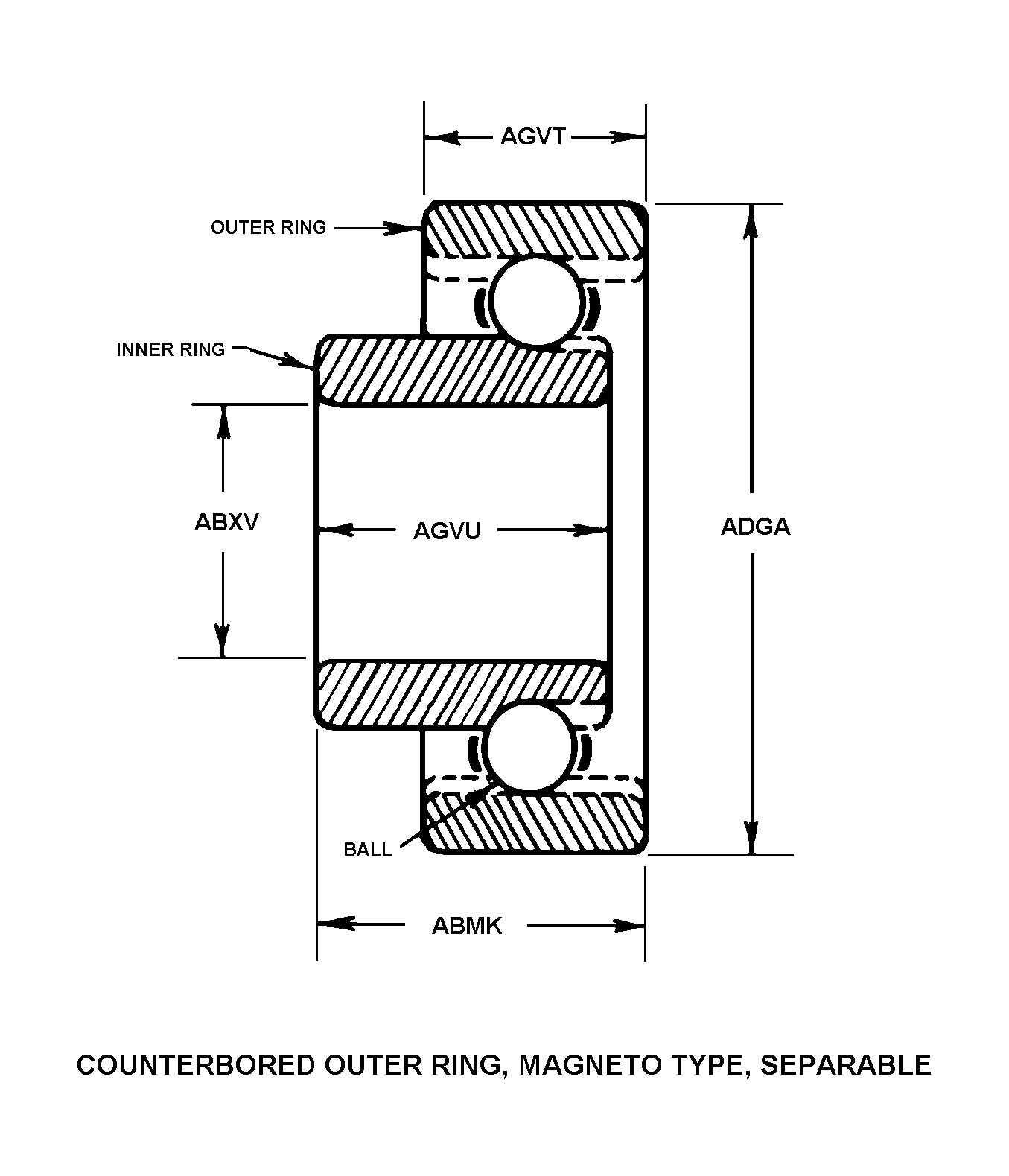

COUNTERBORED OUTER RING, MAGNETO TYPE, SEPARABLE
Cross Reference | NSN 3110-00-678-0408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 909067 | 24617 | GENERAL MOTORS CORP |
| 909067 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
Technical Data | NSN 3110-00-678-0408
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, MAGNETO TYPE, SEPARABLE |
| OVERALL WIDTH | 0.6980 INCHES MINIMUM AND 0.7180 INCHES MAXIMUM |
| BORE DIAMETER | 0.7498 INCHES MINIMUM AND 0.7503 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.0794 INCHES MINIMUM AND 2.0800 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.4700 INCHES NOMINAL |
| INNER RING WIDTH | 0.4700 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | INNER RING SHOULDEREDONE SIDE; ANGULARITY 25 DEG PORM 10 DEG |
