NSN 3110-00-678-3476
Part Details | TRACK ROLLER ROLLER BEARING
3110-00-678-3476 An antifriction bearing having cylindrical rolling elements designed for use in a track roller assembly.
Alternate Parts: 10863543, 3110-00-678-3476, 00-678-3476, 3110006783476, 006783476
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-678-3476 | 00047 ( BEARING, ROLLER, TRACK ROLLER ) |
REFERENCE DRAWINGS & PICTURES

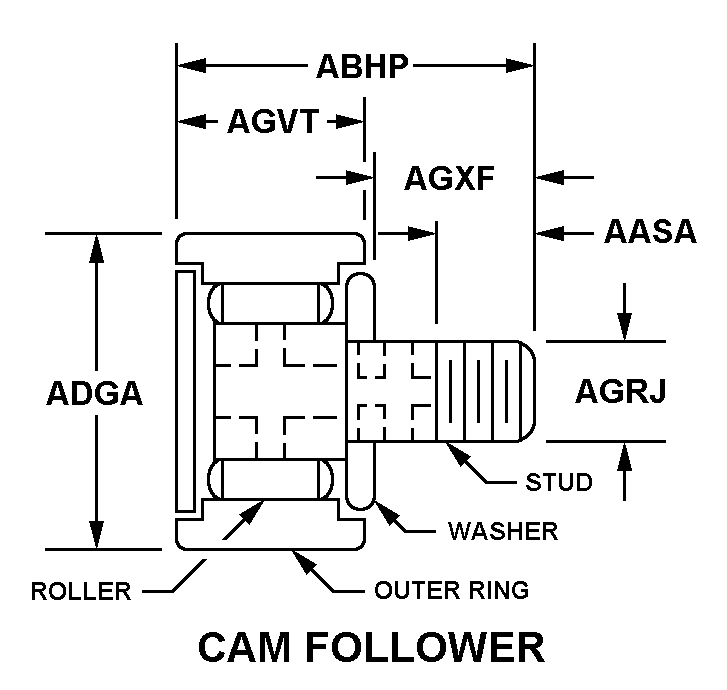

CAM FOLLOWER
Cross Reference | NSN 3110-00-678-3476
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10863543 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-678-3476
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CAM FOLLOWER |
| THREAD LENGTH | 0.3590 INCHES NOMINAL |
| OVERALL LENGTH | 0.9380 INCHES MINIMUM AND 1.0100 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.7495 INCHES MINIMUM AND 0.7510 INCHES MAXIMUM |
| STUD DIAMETER | 0.3105 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3390 INCHES MINIMUM AND 0.3440 INCHES MAXIMUM |
| STUD LENGTH | 0.5930 INCHES MINIMUM AND 0.6400 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
