NSN 3110-00-679-1265
Part Details | NEEDLE ROLLER BEARING
3110-00-679-1265 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Alternate Parts: K10100211, K101002-11, AA19334, AA19334, 3110-00-679-1265, 00-679-1265, 3110006791265, 006791265
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-679-1265 | 00051 ( BEARING, ROLLER, NEEDLE ) |

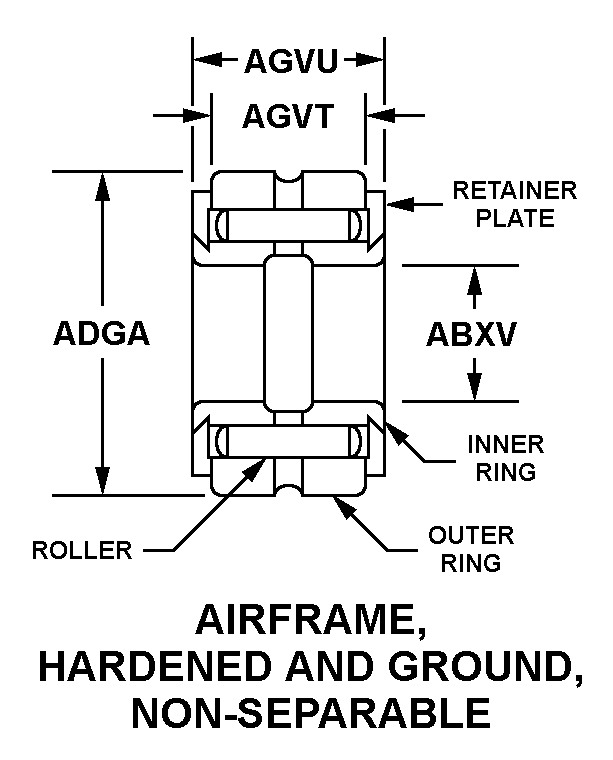

REFERENCE DRAWINGS & PICTURES
AIRFRAME, HARDENED AND GROUND, NON-SEPARABLE
Cross Reference | NSN 3110-00-679-1265
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K101002-11 | 84955 | KAMAN AEROSPACE CORPORATIONDBA AIR VEHICLES & MRO DIVISION |
| AA19334 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| AA19334 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
Technical Data | NSN 3110-00-679-1265
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AIRFRAME, HARDENED AND GROUND, NON-SEPARABLE |
| BORE DIAMETER | 1.9993 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.7494 INCHES MINIMUM AND 2.7500 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.0160 INCHES MINIMUM |
| INNER RING WIDTH | 1.2450 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-3278 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| SPECIAL FEATURES | OIL HOLE AND GROOVE IN OUTER AND INNER RINGS |
