NSN 3110-00-679-4132
Part Details | ANNULAR BALL BEARING
3110-00-679-4132 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: ST596, ST596, 3110-00-679-4132, 00-679-4132, 3110006794132, 006794132
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-679-4132 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

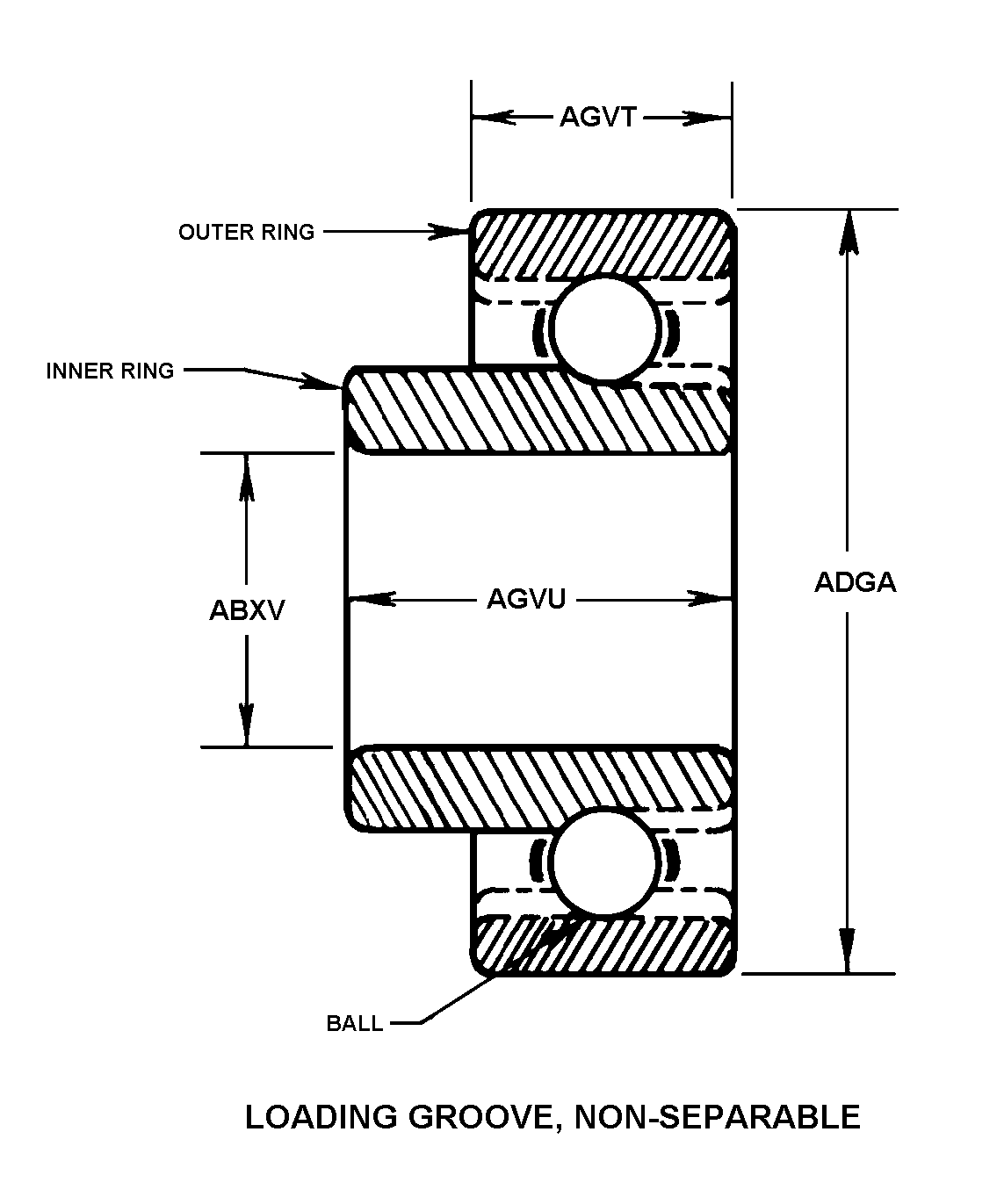

LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-679-4132
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST596 | 29930 | INTERNATIONAL HARVESTER COAGRICULTURAL EQUIPMENT DIV |
| ST596 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
Technical Data | NSN 3110-00-679-4132
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 50.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 90.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.6860 INCHES NOMINAL |
| INNER RING WIDTH | 0.7485 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 1 |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | R0.0060 INCHES MINIMUM AND R0.0090 INCHES MAXIMUM |
